KEYLESS GO start/stop button component description - GF80.61-P-4201CW
MODEL 204.0/2 with CODE (889) Keyless Go up to Model Year 8

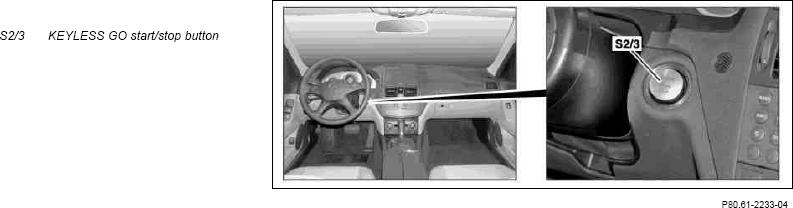

Shown on model 204.0
Location
The KEYLESS GO start/stop button is located on the electronic ignition lock control unit (N73).
Task
The engine is started or stopped or the various circuits (circuit 15R and circuit 15) can be switched on and off using the KEYLESS GO start/stop button depending on the status of the service brake.
If required, the KEYLESS GO start/stop button can be removed from the electronic ignition lock control unit. The vehicle can then be operated conventionally using the transmitter key (A8/1).
