Convenience feature (CF), block diagram - GF80.45-P-0003-03CW

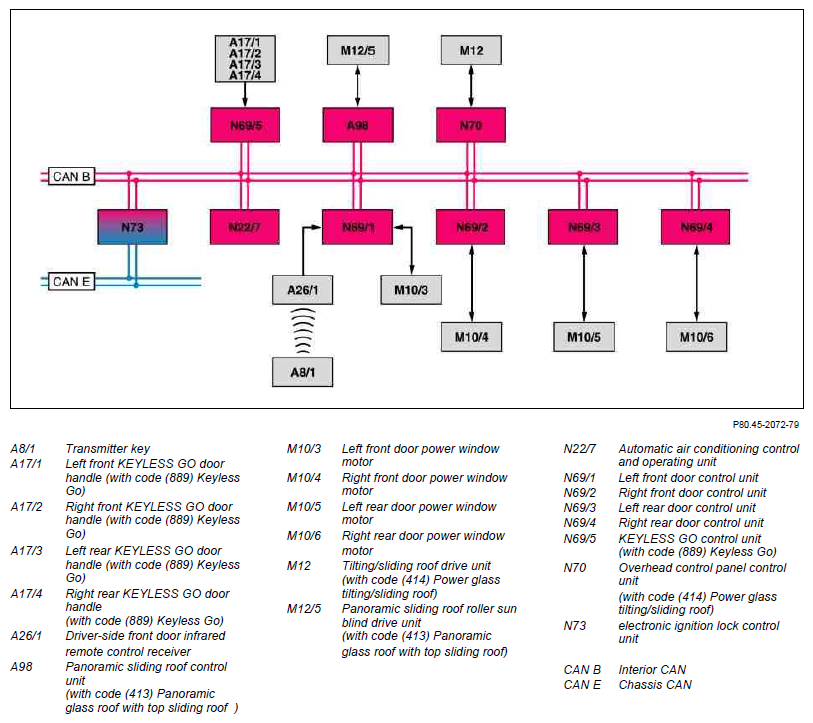

Fig 1: Convenience Feature Block Diagram
G07531881Courtesy of MERCEDES-BENZ USA
