Central locking (CL), block diagram - GF80.20-P-0005-10CW

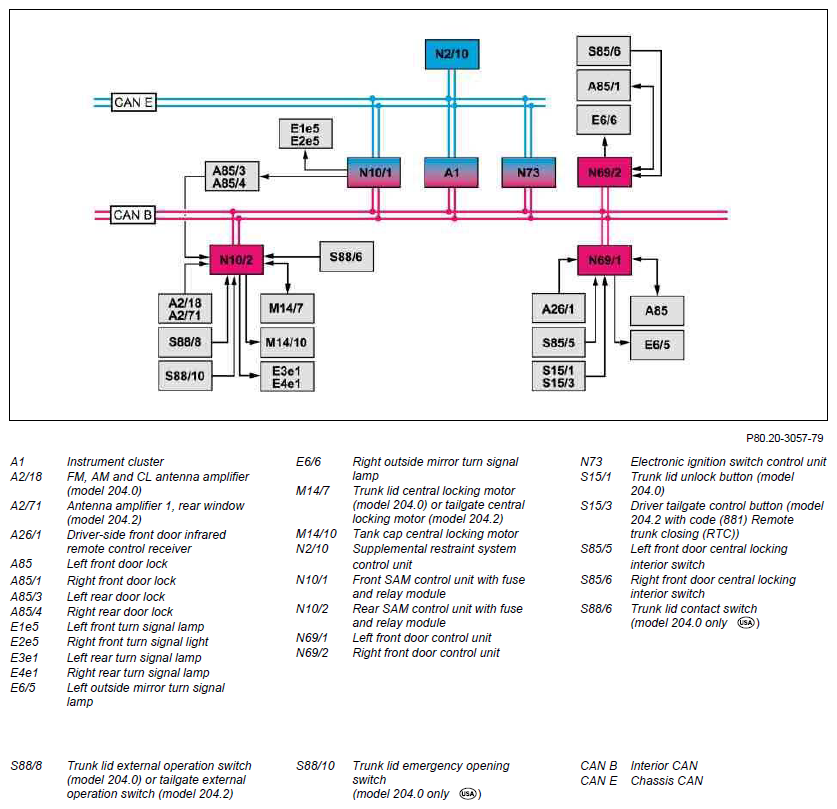

Fig 1: Central Locking Block Diagram

G07531871

Courtesy of MERCEDES-BENZ USA
