Remove/install washer fluid reservoir heat exchanger - AR82.35-P-6006CW
MODEL 204.0 /2, 207, 212, 218 with CODE (875) Heated windshield washer system

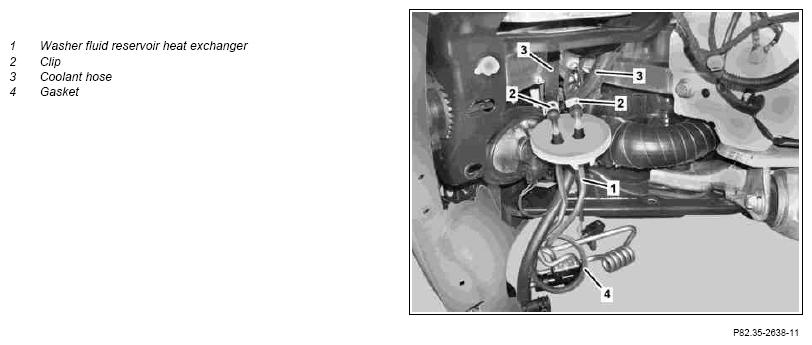

Shown on model 204.0
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Remove windshield washer fluid reservoir | AR82.35-P-6000CW | |
| 2 | Clamp off coolant hoses (3) with clamping devices | Fig 2 | |
| 3 | Detach clamps (2) on coolant hoses (3) | ||
| 4 | Detach coolant hoses (3) from washer fluid reservoir heat exchanger (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Inspecting cooling system for leaks | Engine 156 in model 204.0/2 | AR20.00-P-1010CMG |
| Engine 271, 272, 642, 646, 651 in model 204 Engine 272, 273, 642 in model 207 Engine 271, 642, 651 in model 212 |
AR20.00-P-1010CW | ||
| Engine 272, 273 in model 212 | AR20.00-P-1010EW | ||
| Engine 276 in model 218 | AR20.00-P-1010EL | ||
| Engine 642 in model 218 | AR20.00-P-1010OMA |
