Retrofit antenna signal splitter - AN82.85-P-0020-03FH

  1. Fasten FM/TMC antenna splitter (A2/98) using double-sided adhesive tape to the carrier (7).
  2. Also fasten FM/TMC antenna splitter (A2/98) with two cable ties (8).

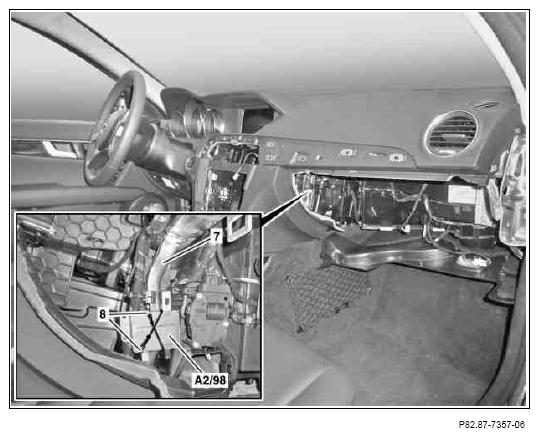

    Fig 1: Identifying FM/TMC Antenna Splitter, Carrier And Cable Ties
    G07528614Courtesy of MERCEDES-BENZ USA
