Retrofit iPod interface - AZ82.60-P-0001-03CW

Wind self-adhesive felt tape (21) around the iPod interface (3), as shown, at the side with the plug socket for the iPod wiring harness (see arrow).
Attach felt tape (22), as shown, onto iPod interface (3).
Adhesion surfaces must be clean, dry and free of grease.

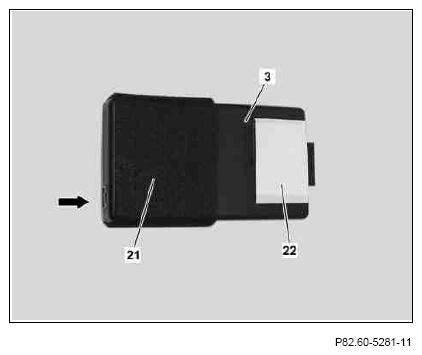

Fig 1: Identifying Self-Adhesive Felt Tape On iPod Interface
Courtesy of MERCEDES-BENZ USA

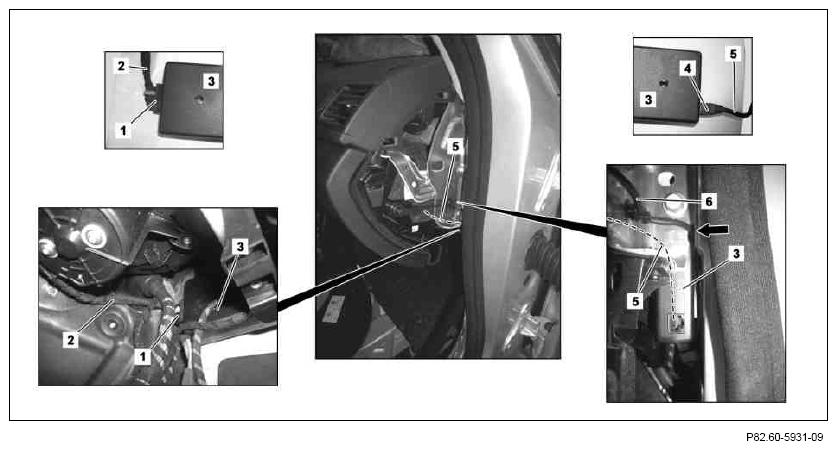

Fig 2: Identifying Interface Wiring Harness, Coupling, iPod Interface And Connector
Courtesy of MERCEDES-BENZ USA
Connect interface wiring harness (2) coupling (1) to iPod interface (3).
Route the AUX jack wiring harness (6) into the upper area of the cutout between the instrument panel and the A-pillar (arrow).
Installation of the AUX connection depends on the vehicle equipment.
Position iPod interface (3) onto A-pillar and fasten to A-pillar using Velcro strip.
Adhesion surfaces must be clean, dry and free of grease. If required, the iPod interface (3) additionally has to be secured in place with self-adhesive felt tape.
Connect iPod wiring harness (5) connector (4) to iPod interface (3).
