Retrofit Universal Media Interface connecting cable - AZ82.85-P-0004-05CX

Open lid of glove box (22).
Make cutout on glove box (22), as shown.
Cordless drill/driver

Body jig saw

The cutout is partly pre-perforated, if this is not the case, make cutout to following dimensions:
1. = 15 mm
2. = 60 mm
3. = 5 mm
4. = 25 mm

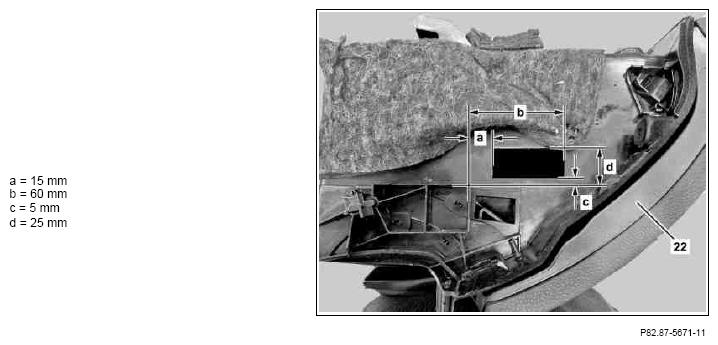

  Fig 1: Identifying Glove Box Cutout Dimensions
  Courtesy of MERCEDES-BENZ USA
Reduce wall thickness for glove box in cross-hatched area using square file.
The wall thickness of the glove box has to be reduced such that the catch hooks of the covering for the Universal Media Interface connecting cable can latch into place.

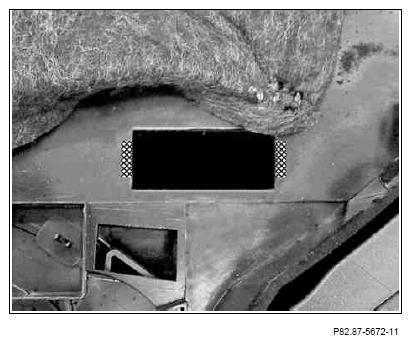

Fig 2: Identifying Glove Box Wall Thickness Reduction In Cross Hatched Areas
Courtesy of MERCEDES-BENZ USA
Wrap felt tape around Universal Media Interface connecting cable (2) behind covering (2.3).
Open lid of glove box (22).
Route Universal Media Interface connecting cable (2) from inside through the opening in the glove box (22) and clip in covering (2.3) of Universal Media Interface connecting cable (2) from inside into glove box (22).
Make sure that the catch hooks (2.4) are latched into place.

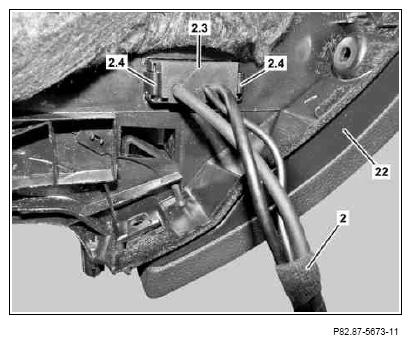

Fig 3: Identifying Glove Box, Universal Media Interface Connecting Cable And Covering
Courtesy of MERCEDES-BENZ USA
Use felt tape (23) to fasten Universal Media Interface connecting cable (2) onto glove box (22).

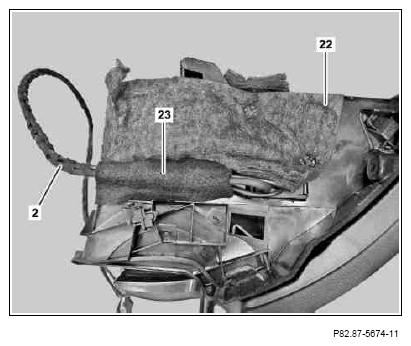

Fig 4: Identifying Felt Tape On Universal Media Interface Connecting Cable And Glove Box
