Retrofit phone bracket - AN82.70-P-0001-02FH

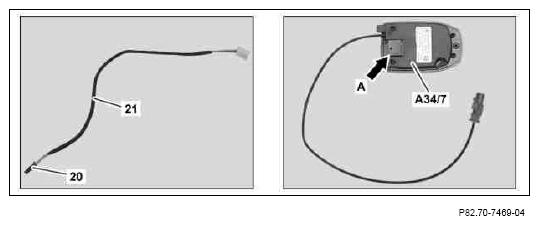

Connect black 4-pin coupling (20) of adapter line (21) to Bluetooth module (A34/7) (arrow A).

Fig 1: Identifying Bluetooth Module
Courtesy of MERCEDES-BENZ USA

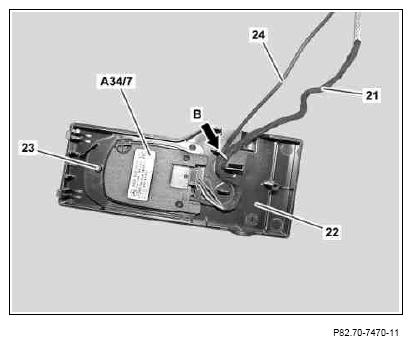

Insert Bluetooth module (A34/7) into retaining plate (22) and fasten with screw/bolt (23).
Fasten adapter line (21) and antenna line (24) to bracket (arrow B).

Fig 2: Identifying Antenna Line To Bracket
Courtesy of MERCEDES-BENZ USA

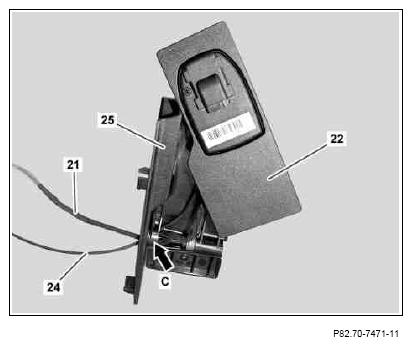

Route adapter line (21) and antenna line (24), as shown, through the opening (arrow C) on the bottom section of the console (25).
Clip retaining plate (22) onto bottom section of the console (25).

Fig 3: Identifying Console Opening Section
Courtesy of MERCEDES-BENZ USA

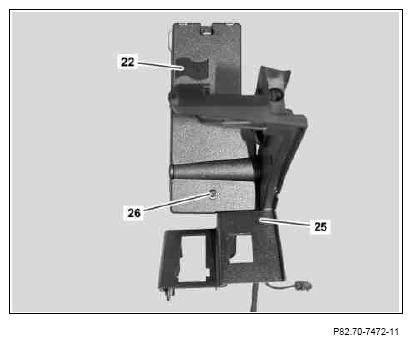

Connect retaining plate (22) and bottom section of the console (25) using screw/bolt (26).

Fig 4: Identifying Adapter Line, Retaining Plate And Console
Courtesy of MERCEDES-BENZ USA

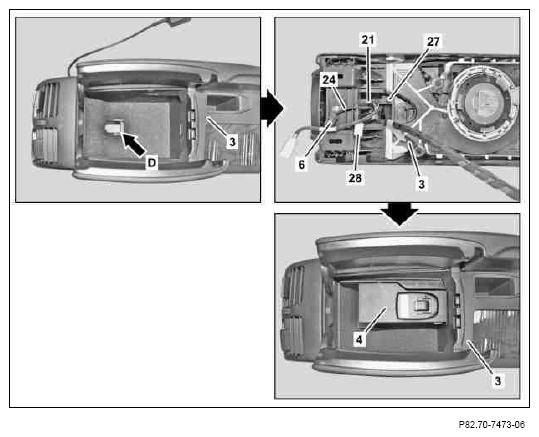

Break out opening (arrow D) in the stowage tray of center console (3).
The opening (arrow D) in the stowage tray is perforated.
Route adapter line (21) and antenna line (24), as shown, through opening (arrow D) into stowage tray of the center console (3).
The white 4-pin coupling (28) and the violet plug for the Bluetooth module (6) are connected when the center console is installed.

Fig 5: Identifying Center Console Opening
Courtesy of MERCEDES-BENZ USA
Install USB connector and AUX connector, if available, to the telephone console (4).
Clip telephone console (4) into stowage tray of center console (3) and fasten using screw/bolt (27) to bottom section of center console (3).
