Retrofit navigation box - AN82.85-P-0020-01FH

Retrofit navigation box Drill four holes with a diameter of 5 mm to match the dimensions on the glove box (5).
Rechargeable drill / screwdriver

Dimensions:
1. = 32 mm
2. = 48 mm
3. = 12 mm
4. = 28 mm

  Fig 1: Identifying Retrofit Navigation Box Holes Dimension
  Courtesy of MERCEDES-BENZ USA

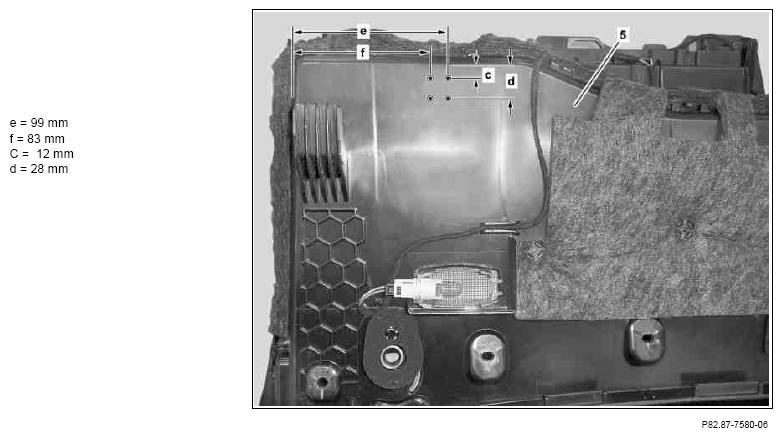

Drill four holes with a diameter of 5 mm to match the dimensions on the glove box (5).
Rechargeable drill / screwdriver

Dimensions:

e = 99 mm

f = 83 mm

C = 12 mm

d = 28 mm

Fig 2: Identifying Retrofit Navigation Box Holes Dimension
Courtesy of MERCEDES-BENZ USA

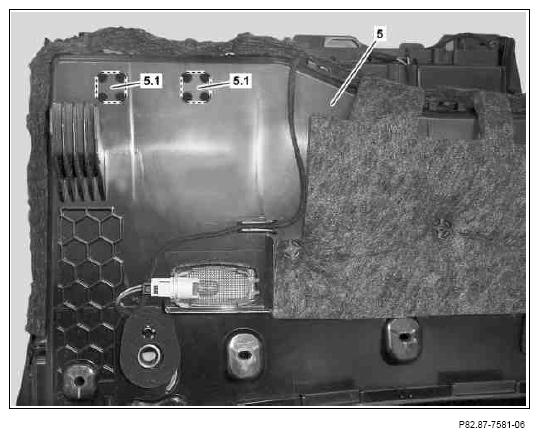

Separate cutouts (5.1) using body jig saw along broken lines.
Body jig saw

Fig 3: Identifying Retrofit Navigation Box Cut Out
Courtesy of MERCEDES-BENZ USA

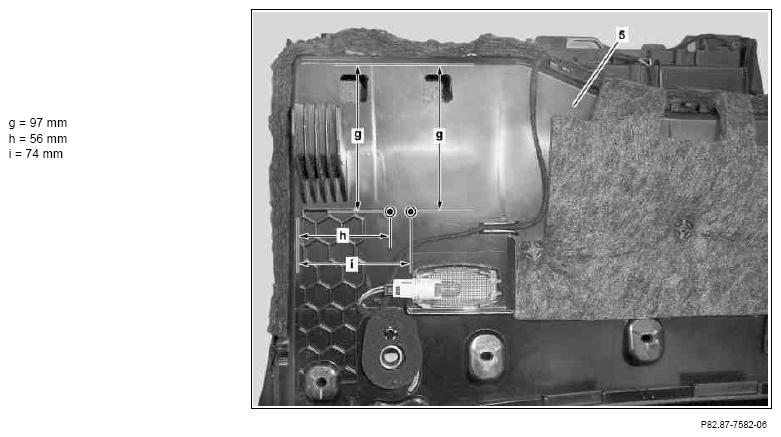

Drill two holes with a diameter of 4 mm to match the dimensions on the glove box (5).
Rechargeable drill / screwdriver

Dimensions:

g = 97 mm

h = 56 mm

i = 74 mm

Fig 4: Identifying Retrofit Navigation Box Holes Dimension
Courtesy of MERCEDES-BENZ USA

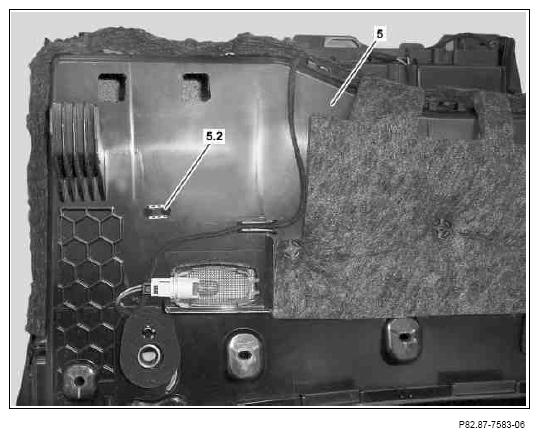

Separate cutout (5.2) using body jig saw along broken lines.
Body jig saw

Fig 5: Identifying Retrofit Navigation Box Cut Out
Courtesy of MERCEDES-BENZ USA

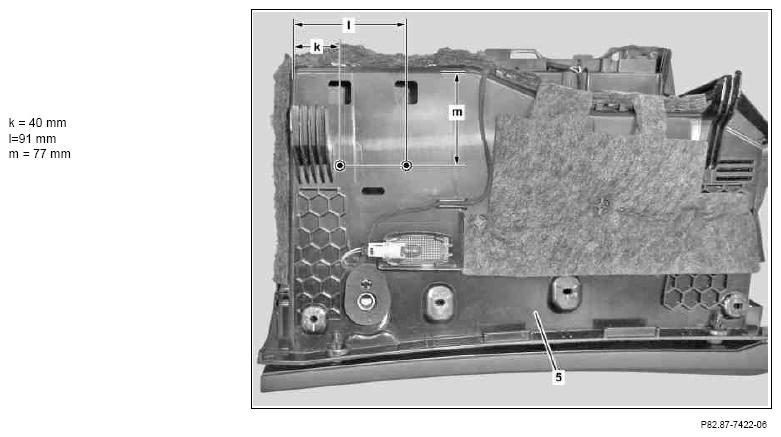

Drill two holes with a diameter of 5 mm to match the dimensions on the glove box (5).
Rechargeable drill / screwdriver

Dimensions:

k = 40 mm

l=91 mm

m = 77 mm

Fig 6: Identifying Retrofit Navigation Box Holes Dimension
Courtesy of MERCEDES-BENZ USA

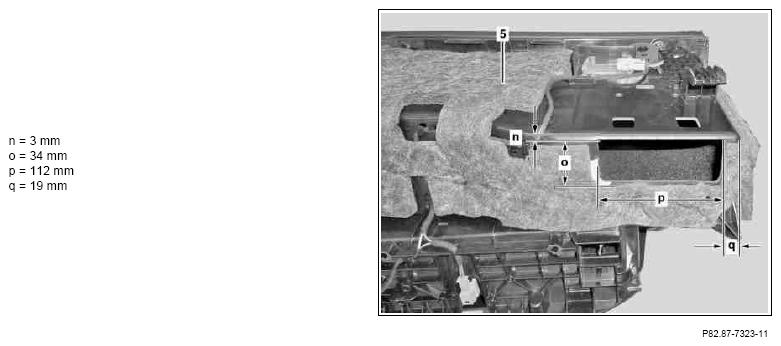

Make cutout to match dimensions on rear side of glove box (5).
Rechargeable drill / screwdriver

Body jig saw

Dimensions:

n = 3 mm

o = 34 mm

p = 112 mm

q = 19 mm

Fig 7: Identifying Retrofit Navigation Box Cut Out Dimensions
Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Navigation Module And Glove Box
Courtesy of MERCEDES-BENZ USA

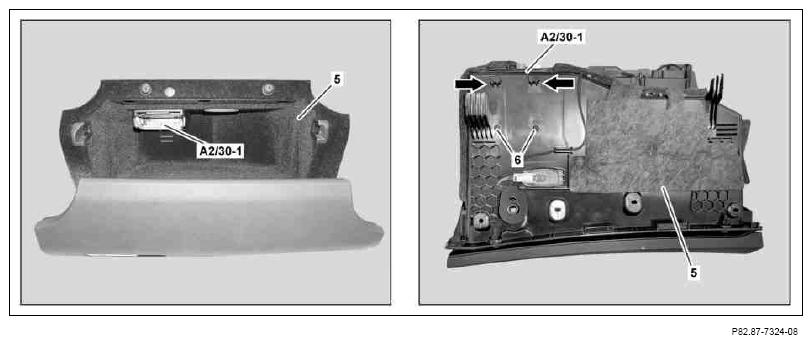

Insert bracket for navigation module (A2/30-1) into cutouts (arrows) on glove box (5) and fasten in place using screws/ bolts (6).
Set down glove box (5) in front passenger footwell.

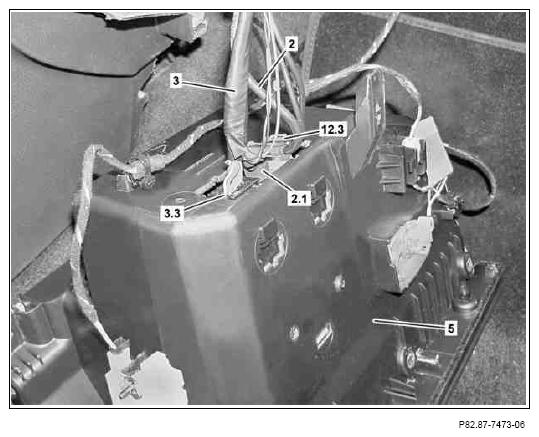

Join connector for low voltage differential signal (2.1) of LVDS wiring harness (2) to navigation module cradle.
Connect white 2-pin coupling (12.3) of antenna line to navigation module cradle.
Connect black 12-pin coupling (3.3) of navigation module wiring harness (3) to navigation module cradle.

Fig 9: Identifying Glove Box, 2-Pin Coupling, 12-Pin Coupling And LVDS Wiring Harness
Courtesy of MERCEDES-BENZ USA
