Retrofit media interface wiring harness - AN82.60-P-0016-02FHA

Clip electrical connector for media interface (X18/70) of media interface wiring harness (10) into the telephone console (2).

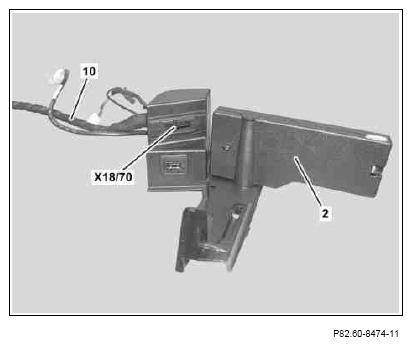

Fig 1: Identifying Media Interface (X18/70), Media Interface Wiring Harness And Telephone Console
Courtesy of MERCEDES-BENZ USA
Route media interface wiring harness (10) with video signal branch-off line (11), as shown, through the opening in the stowage tray to the underside of the center console (1).
The media interface wiring harness (10) is routed and connected to the media interface control unit during installation of the center console (1). The video signal branch-off line (11) is connected to the audio equipment after installation of the center console (1).

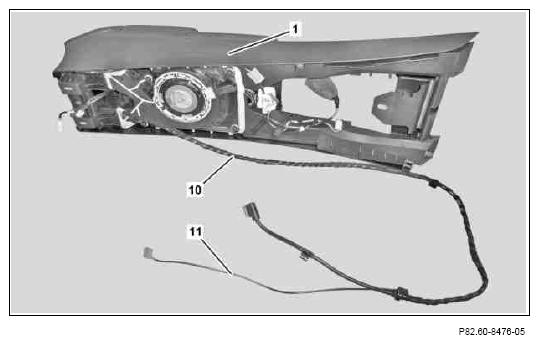

Fig 2: Identifying Center Console, Media Interface Wiring Harness And Video Signal Branch-Off Line
Courtesy of MERCEDES-BENZ USA
Install telephone console with media interface wiring harness (10) into center console (1).
