Retrofit media interface wiring harness - AN82.60-P-0016-02FH

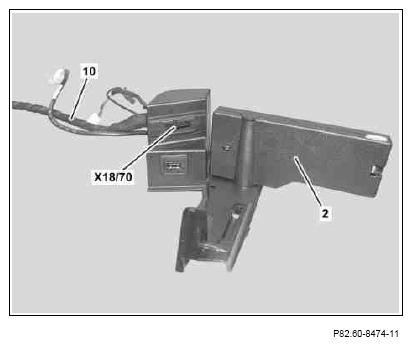

- Clip electrical connector for media interface (X18/70) of media interface wiring harness (10) into the telephone console (2).

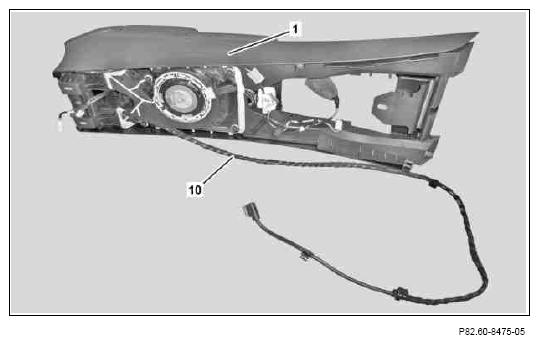

- Route media interface wiring harness (10), as shown, through the opening in the stowage tray to the underside of the center console (1).
The media interface wiring harness is routed and connected to the media interface control unit during installation of the center console (1).
- Install telephone console with media interface wiring harness (10) into center console (1).
