Retrofit media interface control unit - AN82.60-P-0016-01FH

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1036-02B	Body Adhesive Spray, LIQUI MOLY LIQUIMATE 8080

Apply spray adhesive to contact surfaces of bracket (12).
The bonding surface must be free of dust and grease.

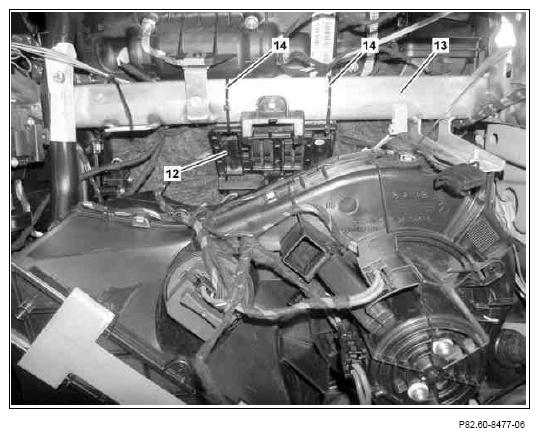

Position bracket (12) from crossmember (13) under the instrument panel and fasten in place using two cable ties (14).

Fig 1: Identifying Position Bracket, Crossmember And Cable Ties
Courtesy of MERCEDES-BENZ USA

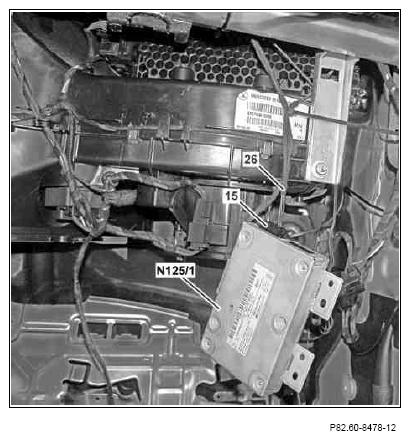

Connect black 3-pin coupling (15) of voltage supply wiring harness (26) to media interface control unit (N125/1).

Fig 2: Identifying Black 3-Pin Coupling, Voltage Supply Wiring Harness And Media Interface Control Unit
Courtesy of MERCEDES-BENZ USA

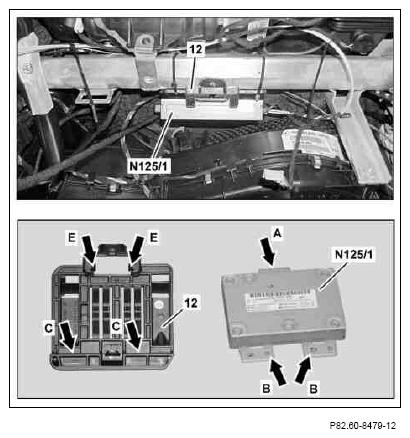

Insert media interface control unit (N125/1) with shackles (arrows B) into the fixtures (arrow C) of the bracket (12).
Position and clip in shackle (arrow A) of media interface control unit (N125/1) at catch hooks (arrows E) of bracket (12).

Fig 3: Identifying Media Interface Control Unit And Bracket
Courtesy of MERCEDES-BENZ USA
