Retrofit front lamp units - AN82.10-P-0050CW

MODEL 204.0 /2 up to 28.2.11 up to model year 2011 except CODE (614) Bi-xenon headlamp unit except CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination except CODE (618) Bi-xenon headlamps except CODE (621) Intelligent Light System (left-hand traffic) except CODE (622) Intelligent Light System (right-hand traffic) Special Edition version

Shown on model 204.0

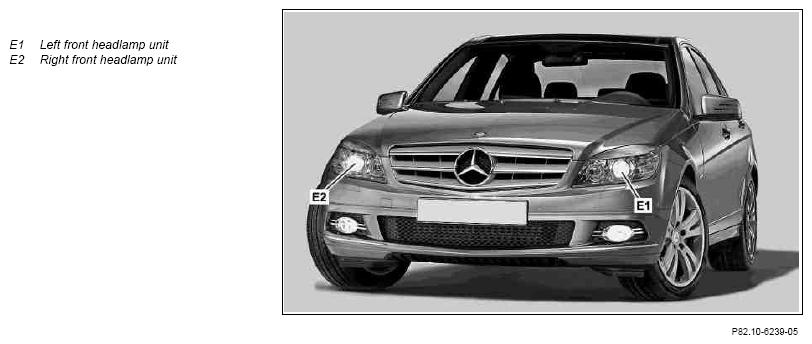

Fig 1: Identifying Left And Right Front Headlamp Units

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove front bumper		AR88.20-P-2000-03CW
2	Remove left front lamp unit (E1) and right front lamp unit (E2)	The left front headlight unit (E1) and right front headlight unit (E2) are no longer required.	AR82.10-P-4730CW
	Install
3	Install new left front lamp unit (E1) and right front lamp unit (E2)		AR82.10-P-4730CW
4	Install front bumper		AR88.20-P-2000-03CW
5	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Parts scope for dimmed headlamps, from code (P37) retrofitted as per AN82.10-P-0050CW " under field organization texts to DG 82.
