Retrofit control unit - AN82.10-P-0001-03CW
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1075-02A | Teroson double-sided adhesive tape For bonding trim strips and emblems (UV-resistant and weatherproof, black) (Width 12 mm) Order no.: 107.64 A (Width 19 mm) Order no.: 107.96 K (Width 25 mm) Order no.: 117.05 Y |
- Stick double-sided adhesive tape, width 25 mm, to entire reverse side of illuminated door sill molding control unit (1).
Bonding surfaces must be pre-treated in accordance with adhesive tape manufacturer's instructions.
- 2.1 Vehicles without electronic transmission control unit (N15/3):

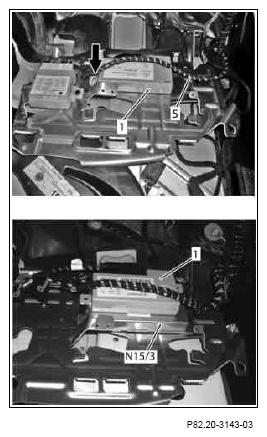

- Glue on illuminated door sill molding control unit (1) to footrest as per picture and fasten with bolt and nut (see arrow).
- 2.2 Vehicles without electronic transmission control unit (N15/3):
- Glue on illuminated door sill molding control unit (1) to electronic transmission control unit (N15/3).
