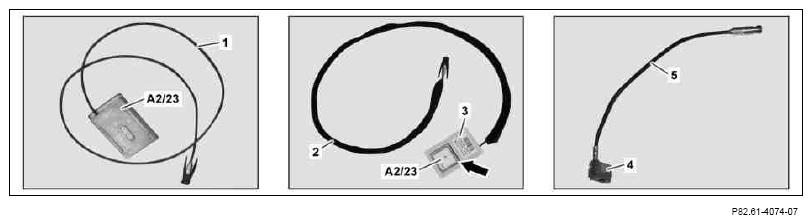

- Wind felt tape (2) around antenna line (1) of GPS antenna (retrofit) (A2/23).
- Detach blue supporting body (4) from the adapter line (5).
The blue supporting body (4) is no longer required. The adapter line (5) is connected to the antenna line (1) at a later stage.
- Remove covering foil (3) from GPS antenna (retrofit) (A2/23).

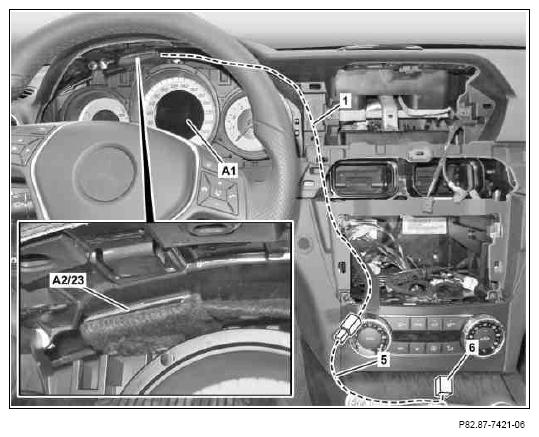

- Stick GPS antenna (retrofit) (A2/23), as shown, above the instrument cluster (A1).
The opening of the GPS antenna (retrofit) (A2/23) must point towards the windshield.
- Also use felt tape to fix GPS antenna (retrofit) (A2/23) in place.
- Insert antenna line (1) into the slot of the COMAND controller unit, as shown.
- Connect adapter line (5) to antenna line (1).
Courtesy of MERCEDES-BENZ USA
- Fit the white supporting body (6) included to the adapter line (5).
The adapter line (5) will be connected to the COMAND controller unit at a later point.
