Retrofit MOST fiber optic cable wiring harness - AN82.61-P-0001-06FH

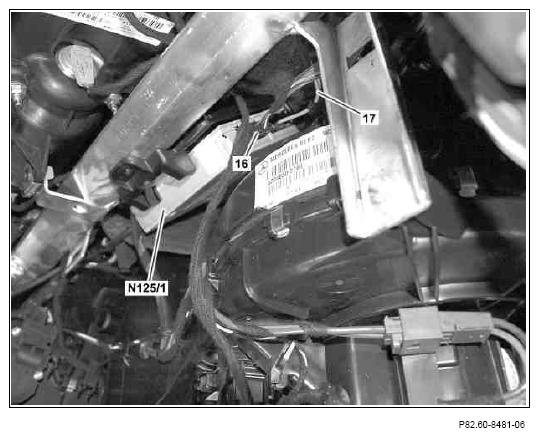

- Connect black 2-pin coupling (16) of optical fiber wiring harness (17) to media interface control unit (N125/1).
Courtesy of MERCEDES-BENZ USA

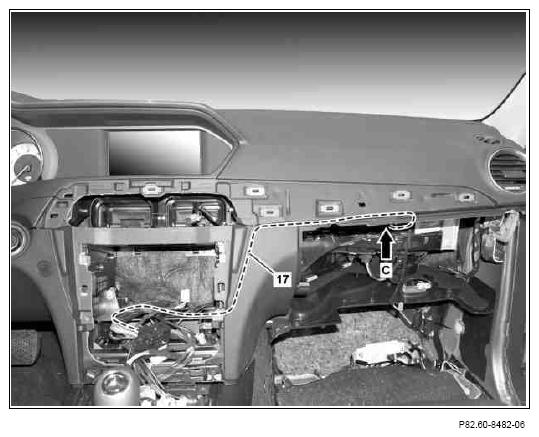

- Route optical fiber wiring harness (17), as shown, from installation location (arrow C) of media interface control unit into slot of audio equipment.
- Fasten optical fiber wiring harness (17) using cable ties to vehicle wiring harness.
Courtesy of MERCEDES-BENZ USA

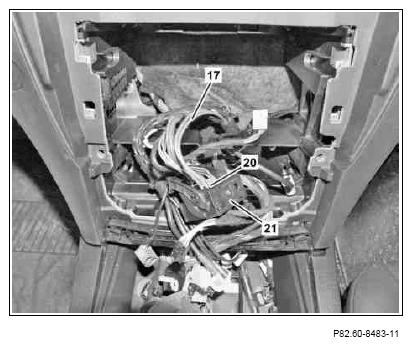

- Install coupling (20) of optical fiber wiring harness (17), as shown, into the outer contact cavity on the black 44-pin coupling (21).
Courtesy of MERCEDES-BENZ USA
