Retrofit COMAND with APS navigation system - AN82.85-P-0003CY

MODEL 204.9## 1# with CODE (523) MB Audio 20 radio with CODE (510) Audio 20 with CD changer with CODE (525) MB Audio 50 APS radio with CODE (511) Audio 50 APS with DVD changer except CODE (512) COMAND APS with DVD changer except CODE (494) USA version except CODE (498) Japan version

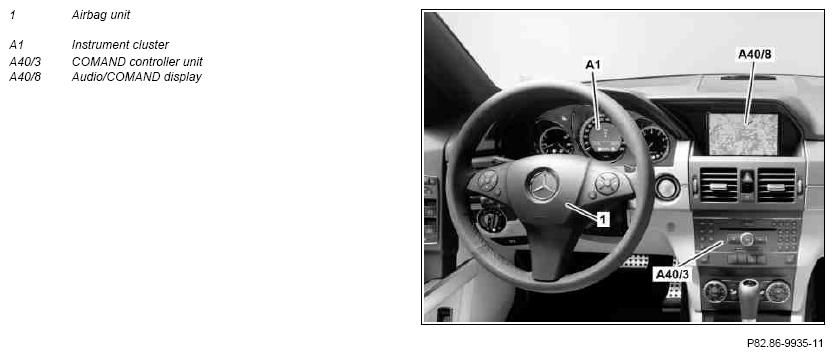

Fig 1: Identifying Airbag Unit, Instrument Cluster, Comand Control Unit And Audio/Comand Display

Courtesy of MERCEDES-BENZ USA

	Remove
1	Move driver seat and front passenger seat towards rear
2	Remove Audio 20 radio or Audio 20 CD radio with CD changer or Audio 50 APS radio or Audio 50 APS radio with DVD changer	The removed audio component is no longer required.	AR82.60-P-7502CW
3	Remove 5-inch Audio/COMAND display (A40/8)	The 5-inch Audio/COMAND display (A40/8) is no longer required.	AR82.60-P-7722CY
4	Remove instrument cluster (A1)	In vehicles without 4.5-inch display in instrument cluster (A1) or with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer	AR54.30-P-6015CY
5	Remove airbag unit (1) from steering wheel	In vehicles without 12-button airbag unit (1).	AR91.60-P-0660CW
6	Remove door sill on driver side
7	Remove paneling at bottom of right A-pillar
8	Remove accelerator pedal		AR30.12-P-1321CW
9	Remove two front screws/bolts at driver seat, loosen two rear screws/bolts at driver seat and remove driver-side floor covering		*BA91.10-P-1002-01Q
10	Remove left cover below dashboard
	Install
11	Retrofit antenna for global positioning system (GPS)	In vehicles with code (523) MB Audio 20 radio or code (510) Audio 20 with CD changer	AN82.61-P-7474-04CY
12	Retrofit wiring harness of COMAND controller unit (A40/3)		AN82.61-P-0001-01CY
			Fig 2
13	Retrofit additional fan of COMAND controller unit (A40/3)		AN82.85-P-0005CW
14	Install 7-inch Audio/COMAND display (A40/8)		AR82.60-P-7722CY
15	Install COMAND controller unit (A40/3)		AR82.60-P-7502CW
16	Install instrument cluster (A1) with 4.5-inch display	In vehicles without 4.5-inch display in instrument cluster (A1) or with code (523) MB Audio 20 radio with code (510) Audio 20 with CD changer In vehicles without 4.5-inch display, this must be replaced with a new instrument cluster (A1) with 4.5-inch display.	AR54.30-P-6015CY
17	Install airbag unit (1) with 12 buttons at steering wheel	In vehicles without 12-button airbag unit (1).	AR91.60-P-0660CW
18	Assemble vehicle	Steps 10 to 6.
19	Connect STAR DIAGNOSIS
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
20	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (527) COMAND with APS navigation system and delete code of removed audio component. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01CW
21	Perform retrofit variant coding	Listed control units must be SCN coded using the Diagnosis Assistance System: Instrument cluster (A1) COMAND controller unit (A40/3).
22	Close STAR DIAGNOSIS
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
23	Perform function test	See COMAND controller unit (A40/3) operating instructions.

Fig 2: Identifying Wiring Harness Repair Kit (220 589 01 99 00)

Courtesy of MERCEDES-BENZ USA
