Retrofit COMAND APS with DVD changer - AN82.85-P-0004FH

MODEL 204.0## /2## (except 204.077 /277) 1# as of 1.3.11 as of model year 2012 with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (523) MB Audio 20 radio except CODE (510) Audio 20 with CD changer except CODE (494) USA version except CODE (498) Japan version

MODEL 204.3## (except 204.377) 1# with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (523) MB Audio 20 radio except CODE (510) Audio 20 with CD changer except CODE (494) USA version except CODE (498) Japan version

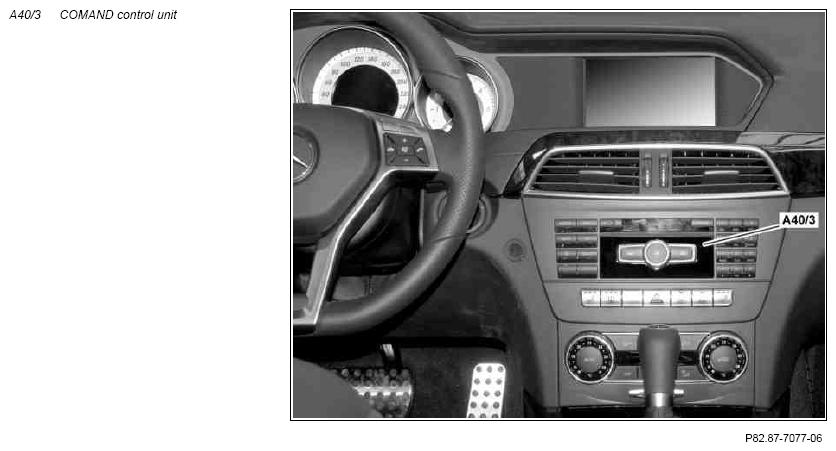

Fig 1: Identifying COMAND Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove COMAND controller unit (A40/3) with single DVD drive (with navigation)	Installation:  Install new COMAND controller unit (A40/3) with DVD changer.
2	Install in the reverse order
3	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Delete:  code (527) COMAND APS with single DVD drive (with navigation system) Add:  Code (512) COMAND APS with DVD changer
4	Document retrofitted equipment through VeDoc	Attach "COMAND APS with DVD changer retrofitted, as per AN82.85-P-0004FH " note under the field organization texts to design group 82.
5	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
6	Run variant coding with XENTRY using software calibration number (SCN)	Listed control units must be SCN coded using the Diagnosis Assistance System: "COMAND controller unit (A40/3)"
7	Disconnect Star Diagnosis
8	Perform function test	See operating instructions of COMAND controller unit (A40/3) with DVD changer.
