Prepare media interface power supply wiring harness - AN82.60-P-0016-04FH

Fig 1: Identifying Wiring Harness Repair Kit (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Cut off blue line (bl) of voltage supply wiring harness at yellow 14-pin coupling (8).
The blue line (bl) is still required.

Perform operation step 2 on vehicles without code (537) Digital radio or without code (810) Sound system.
Fit SLK contact spring to cut-off end of blue line (bl).

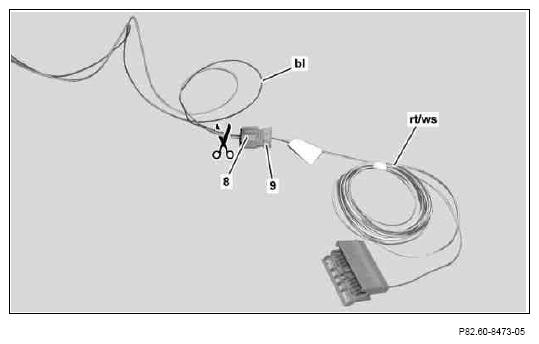

Fig 3: Cutting Off Blue Line Of Voltage Supply Wiring Harness
Courtesy of MERCEDES-BENZ USA

The SLK contact spring is available in the wiring harness repair kit supplement for passenger cars.
Wrap felt tape around red/white line (rt/ws), starting at yellow 14-pin plug (9), for a length of 2700 mm.
