Install additional fan for COMAND - AN82.85-P-0005-01EC

JACKET TUBE

Number	Designation		Model 204	Model 207
BA46.10-P-1001-03Q	Lower bolt, jacket tube to cross member below instrument panel	Nm	26	26
BA46.10-P-1002-03Q	Upper bolt, jacket tube to cross member below instrument panel	Nm	26	26

Unclip electrical connector (4) from steering column tube (1).
Remove bolts (2, 3) and place steering column tube (1) in driver footwell.

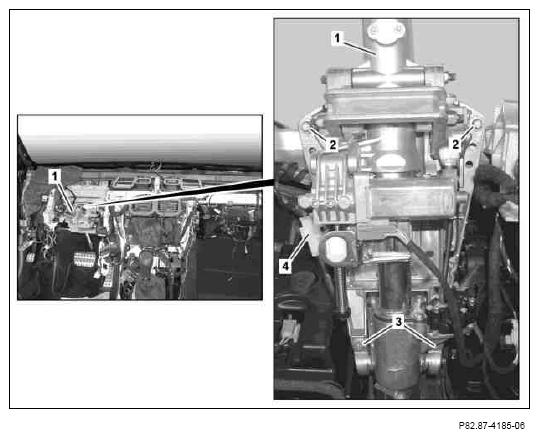

Fig 1: Identifying Steering Column Tube, Electrical Connector And Mounting Bolts
Courtesy of MERCEDES-BENZ USA
Position COMAND fan motor (M4/13) onto supports (8) on air conditioner housing (7) and secure using bolts (5).
Clip plug (6) for COMAND fan motor (M4/13) into bracket (9) on air conditioner housing (7).

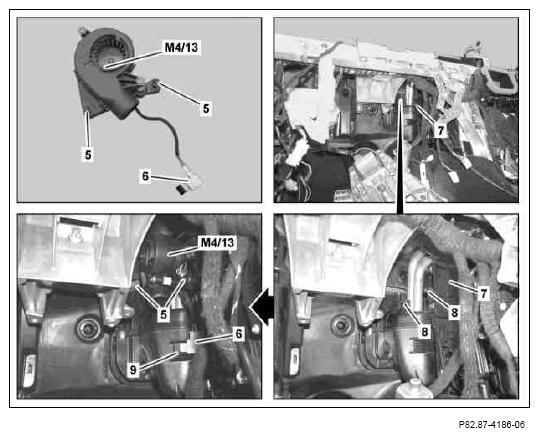

Fig 2: Identifying COMAND Fan Motor, Supports, Air Conditioner Housing And Bolts
Courtesy of MERCEDES-BENZ USA
Screw steering column tube (1) back on using bolts (2, 3).
Observe tightening torque.
Clip electrical connector (4) onto steering column tube (1).

Fig 3: Identifying Steering Column Tube, Electrical Connector And Mounting Bolts
Courtesy of MERCEDES-BENZ USA
