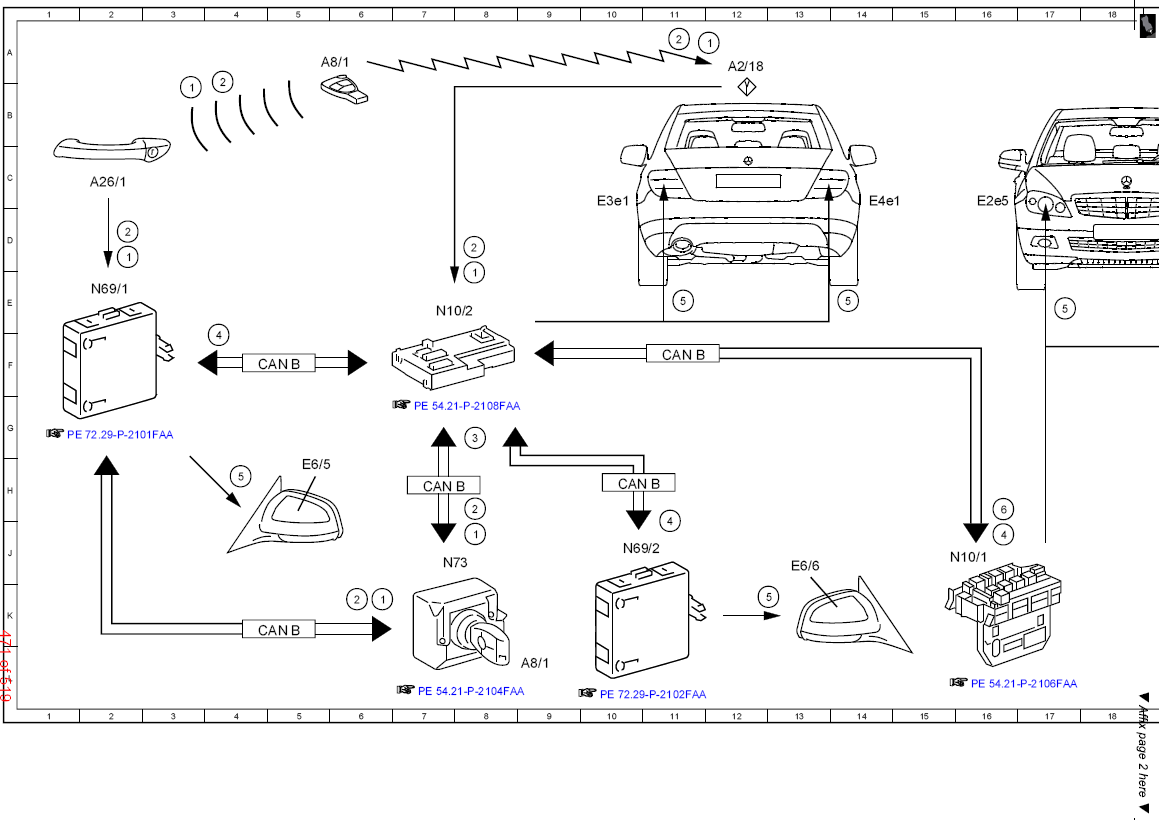

Electrical function schematic for anti-theft alarm system, alarm actuation by panic switch - PE80.50-P-2054-97FAA
MODEL 204 with CODE (763) Radio remote control with panic switch up to model year 08 /YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 6K |
| 1 | Access authorization code, signal | 8J |
| 1 | Access authorization code, signal | 2D |
| 1 | Access authorization code, signal | 3B |
| 1 | Access authorization code, signal | 8E |
| 1 | Access authorization code, signal | 12A |
| 2 | Panic alarm, signal | 6K |
| 2 | Panic alarm, signal | 8H |
| 2 | Panic alarm, signal | 2D |
| 2 | Panic alarm, signal | 4B |
| 2 | Panic alarm, signal | 8D |
| 2 | Panic alarm, signal | 11A |
| 3 | Panic alarm, status | 8G |
| 4 | Flasher frequency, signal | 11J |
| 4 | Flasher frequency, signal | 4F |
| 4 | Flasher frequency, signal | 16J |
| 5 | Turn signal lamp, actuation | 4H |
| 5 | Turn signal lamp, actuation | 11E |
| 5 | Turn signal lamp, actuation | 12K |
| 5 | Turn signal lamp, actuation | 14E |
| 5 | Turn signal lamp, actuation | 17E |
| 5 | Turn signal lamp, actuation | 20E |
| 6 | Interior lamp, request | 16H |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 12A |
| A26/1 | Driver-side front door infrared remote control receiver | 2C |
| A8/1 | Transmitter key | 9L |
| A8/1 | Transmitter key | 5A |
| CAN B | Interior CAN | |
| CAN B | Interior CAN | |
| CAN B | Interior CAN | |
| CAN B | Interior CAN | |
| CAN B | Interior CAN | |

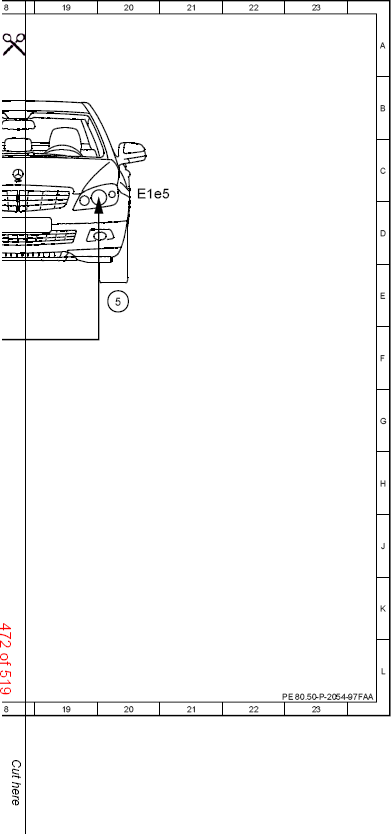

| E1e5 | Left front turn signal lamp | 20C |
| E2e5 | Right front turn signal lamp | 16C |
| E3e1 | Left rear turn signal lamp | 10C |
| E4e1 | Right rear turn signal lamp | 14C |
| E6/5 | Left outside mirror turn signal lamp | 5H |
| E6/6 | Right outside mirror turn signal lamp | 13J |
| N10/1 | Front SAM control unit with fuse and relay module | 16J |
| N10/2 | Rear SAM control unit with fuse and relay module | 7E |
| N69/1 | Left front door control unit | 2E |
| N69/2 | Right front door control unit | 10J |
| N73 | Electronic ignition switch control unit | 7J |
