Keyless Go, location of components - GF80.61-P-0005-01CW

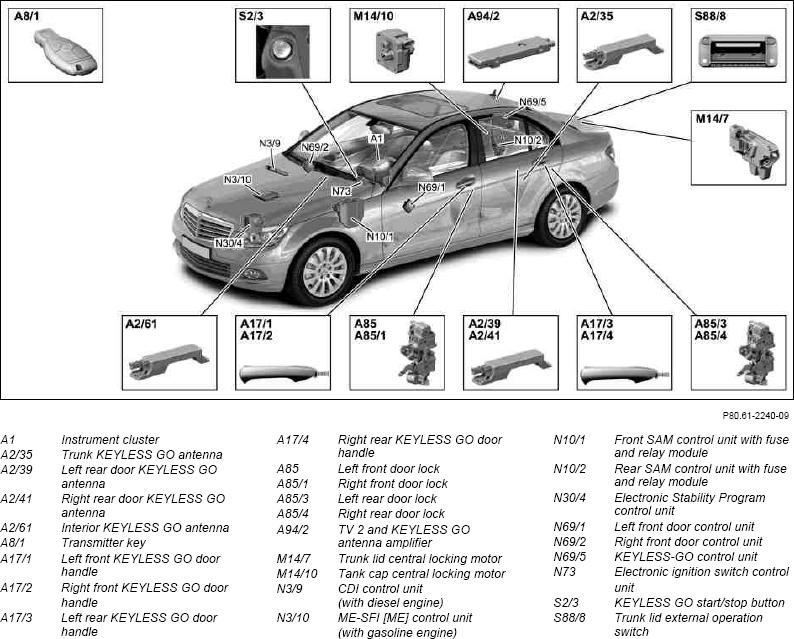

Fig 1: Locating Keyless Go Components

G07531900

Courtesy of MERCEDES-BENZ USA
