KEYLESS GO antenna component description - GF80.61-P-4202CW
MODEL 204.0/2
with CODE (889) Keyless Go up to Model Year 8
Shown on model 204.0

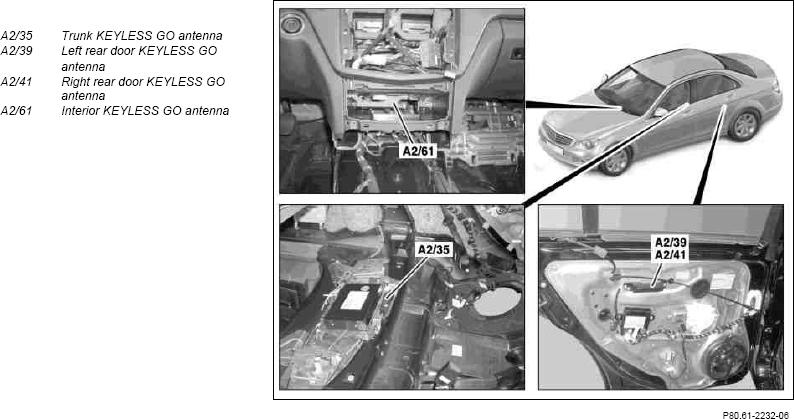

Location
The luggage compartment KEYLESS GO antenna is located in the center on the equipment bridge in front of the spare tire well in the trunk.
The rear door KEYLESS GO antennas are located on the corresponding rear door behind the door paneling.
The interior KEYLESS GO antennas are located behind the automatic air conditioning control and operating unit (N22/7) in the center console.
Tasks
At the request of the KEYLESS GO control unit (N69/5) the KEYLESS GO antennas send a wake-up and locating signal to the transmitter key (A8/1).
