Infrared remote control receiver, component description - GF80.30-P-6000CW
MODEL 204.0/2 up to Model Year 8
Illustrated on model 204.0

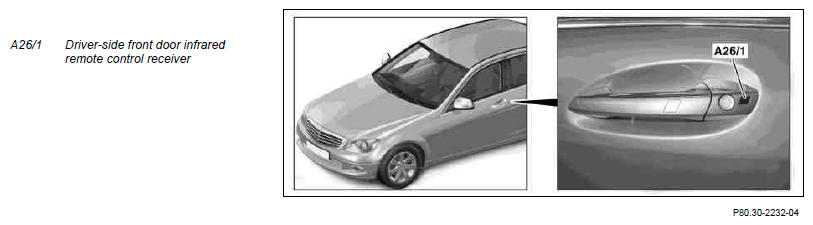

Location
The infrared remote control receiver is located on the outside of the door handle on the driver door.
Task
The infrared remote control receiver receives the signals from the transmitter key (A8/1) and relays them to the right front door control unit (N69/1). The right front door control unit transmits the signals to the interior CAN.
Signals
- Global locking and unlocking central locking (ZV)
- Selective unlocking
- Trunk lid remote release
- Convenience opening and closing
