Alarm siren, component description - GF80.50-P-6060CW
MODEL 204.0/2 with CODE (551) Anti-theft alarm system (ATA [EDW]) up to Model Year 8
Shown on model 204.0

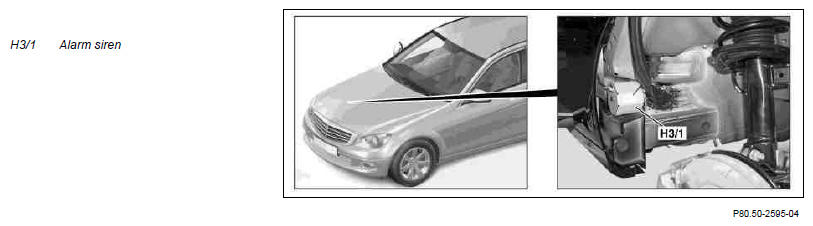

Location
The alarm siren is located in the front wheelhouse on the passenger side.
Design
The alarm siren includes:
- Rechargeable battery for ensuring power supply
- Inclination sensor to analyze vehicle inclination (not
,
and
- Speaker for acoustic alarm output
Tasks
- Acoustic alarm output for anti-theft alarm (ATA)
- Automatic alarm output in the event of loss of supply voltage or communication
- Monitoring vehicle inclination to realize tow-away protection (not
