Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01V
Model 171
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 171 | |||
|---|---|---|---|---|---|

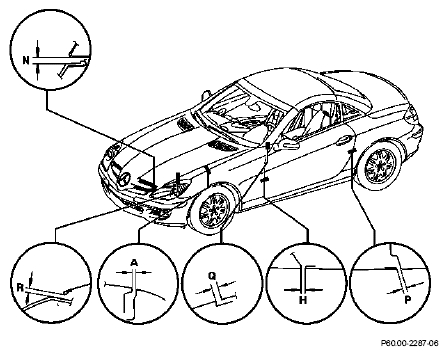

| BE60.00-P-1001-01L | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.0+0.8 |
| Engine hood to headlamp | Dimension "R" | mm | 3.0 ± 1.2 | ||
| Radiator grille to headlamp | Dimension "N" | mm | 3.0 ± 1.2 | ||
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1002-01L | Gap dimension | Front door to fender | Dimension "H" | mm | 3.0+0.8 |
| Fender to A-pillar | Dimension "Q" | mm | 2.0 (+1.5/-0.5) | ||
| Front door to rear fender | Dimension "P" | mm | 3.0+0.8 | ||
| For figure, see | AR60.00-P-0700-01V | ||||

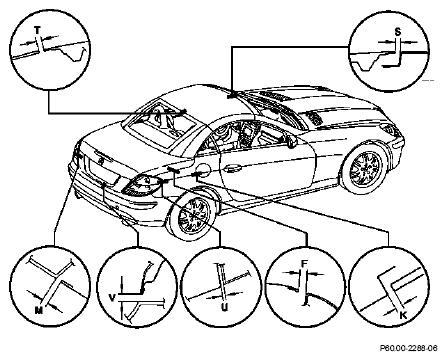

| BE60.00-P-1003-01L | Gap dimension | Trunk lid to rear fender | Dimension "F" | mm | 3.5+1.5 |
| Trunk lid to taillamp | Dimension "M" | mm | 4.0 (+1.6/-0.5) | ||
| Trunk lid to bumper | Dimension "V" | mm | 5.0 (+1.5/-1.0) | ||
| Rear fender to taillamp | Dimension "U" | mm | 2.5 ± 0.5 | ||
| Trunk lid tip to rear fender | Dimension "E" | mm | 5.0 (+1.5) | ||
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1004-01L | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3.0 ± 0.5 |
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1005-01L | Gap dimension | Roof to windshield frame | Dimension "S" | mm | 5.0+1.0 |
| Roof to rear window frame | Dimension "T" | mm | 5.0 ± 0.5 | ||
| For figure, see | AR60.00-P-0700-01V | ||||
Adjust hood, doors and trunk lid as shown in drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
