Remove/install underbody paneling - AR61.30-P-1001V

MODEL 171

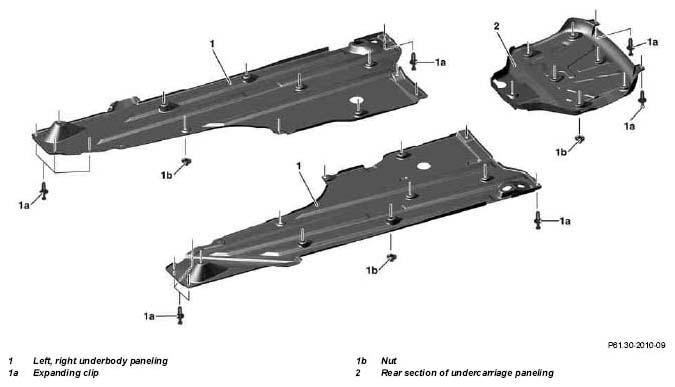

Fig 1: Identifying Underbody Paneling Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

11.2.04

Tool newly included

Step 3

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	-
1	Raise vehicle with lifting platform	Use adapter kit.	AR00.60-P-1000V
		Adapter kit	Fig 2
2	Install expanding clips (1a)
3	Unscrew nuts (1b) and remove left or right or rear section of underbody paneling (1, 2)	Separate rear section of underbody paneling (2) in area of diagonal struts.
		Battery-powered drill/screwdriver	*WH58.30-Z-1007-20A
4	Install in the reverse order

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1007-20A	Cordless drill/driver
