Remove/install front prefuse box - AR54.15-P-1330V

MODEL 171.4

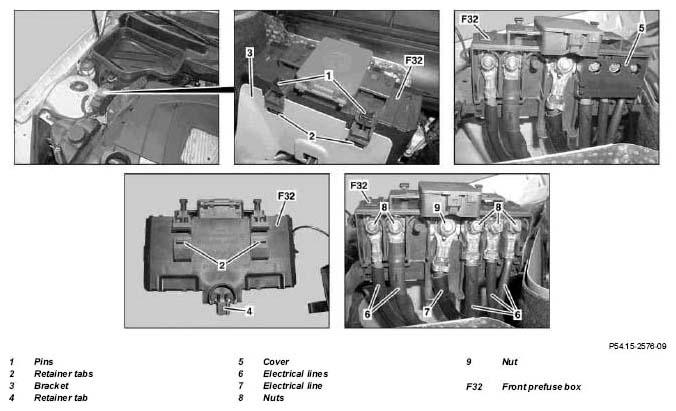

Fig 1: Identifying Front Pre-Fuse Box Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Disconnect battery ground line		AR54.10-P-0003V
2	Push up pins (1) using a suitable screwdriver.
3	Press retainer tabs (2) using a suitable screwdriver and remove front prefuse box (F32) upwards out of bracket (3).	Installation:  Ensure that retainer tabs (4) are seated correctly in bracket (3).
4	Unclip cover (5) from front prefuse box (F32)	Unclip cover (5) carefully - risk of damaging housing of front prefuse box (F32).
5	Mark installation position of electrical lines (6, 7).	Installation:  Observe installation markings.
6	Remove nuts (8) and detach electrical lines (6) from Front prefuse box (F32).	Nuts (8) remain on electrical lines (6).
			*BA54.10-P-1009-01C
7	Remove nut (9) and detach electrical line (7) from front prefuse box (F32).	Nut (9) remains on electrical line (7).
			*BA54.10-P-1009-01C
8	Install in the reverse order

BATTERY

Number	Designation			Model 171
BA54.10-P-1009-01C	Nut, line connection to front prefuse box	M6	Nm	7
		M8	Nm	8
