Prepare top front longitudinal member - AR62.20-P-1286-02V
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

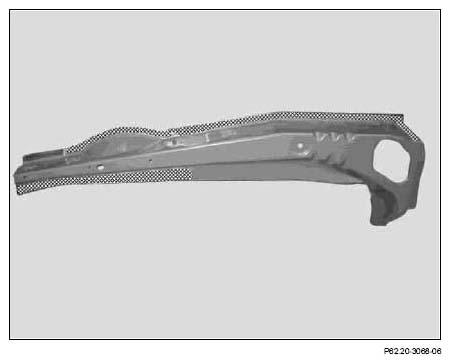

The following steps apply for the left side of the front upper longitudinal member (1) and should be performed on the right side in the same manner when damaged
- Brush connection surfaces down to bare metal in shaded areas.
Brush spot welding flange down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
