Install top front longitudinal member - AR62.20-P-1286-03V
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
| WH58.30-Z-1003-29A | Hand riveter |
WORKSHOP EQUIPMENT
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1018-07A | Primer spray can with repair kit | A 000 986 32 50 |
| BR00.45-Z-1001-13A | Rivet | A 003 990 35 97 |
The following steps apply for the left side of the front upper longitudinal member (1) and should be performed, when damaged, on the right side in the same manner.
- Install front upper longitudinal member (1) with
welding device, fit and fasten with
clamping pliers.

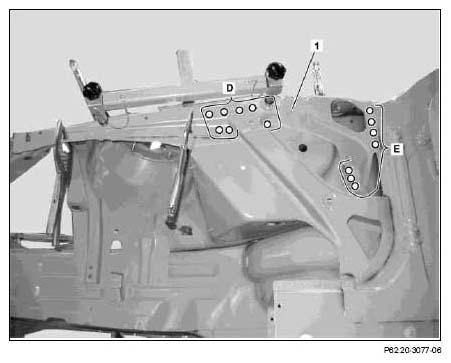

- Drill dia. 6.5 mm rivet holes in front upper longitudinal member (1) (areas D and E).
- Remove front upper longitudinal member (1).
- Deburr rivet holes on both sides
- Remove grinding and drilling chips with wet/dry vacuum cleaner.
- Apply primer to inside of rivet connections
- Install front upper longitudinal member (1) with
- Fasten front upper longitudinal member (1) with

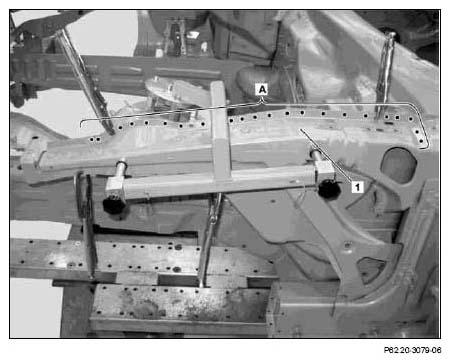

- Weld in front upper longitudinal
member (1) with (area A).

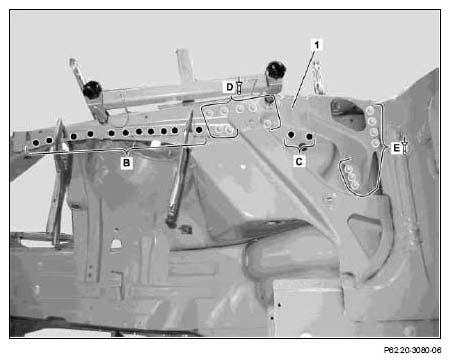

- Weld in front upper longitudinal member (1) with
- Rivet front upper longitudinal member (1) with Polygrip flat/round head rivet, 6.4 x 14 (areas D and E).
