Prepare partition wall on upper firewall - AR62.20-P-1221-02V

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-02A Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
  1. Punch dia. 7 mm holes on new part (area C).
  2. Brush shaded areas down to bare metal
  3. Brush connection surfaces down to bare metal in shaded areas.

    IMPORTANT Brush spot welding flange down to bare metal on both sides.

  4. Coat insides of spot weld flanges with zinc dust paint.

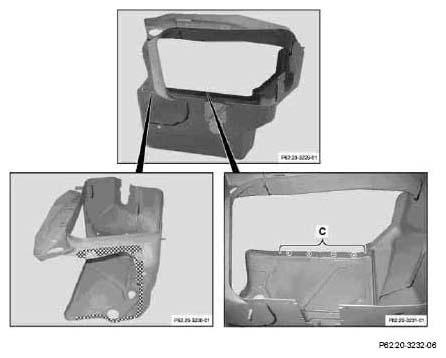

    Fig 1: Identifying Area C For Punching Holes
    G05027916Courtesy of MERCEDES-BENZ USA
