Partially remove front cross member - AR62.30-P-1350-04V
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

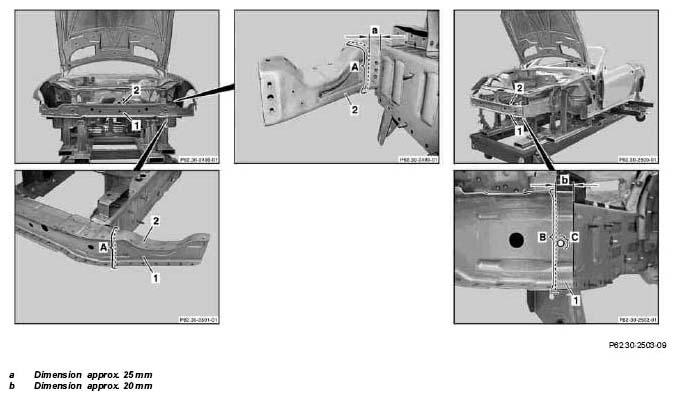

Dimensions:

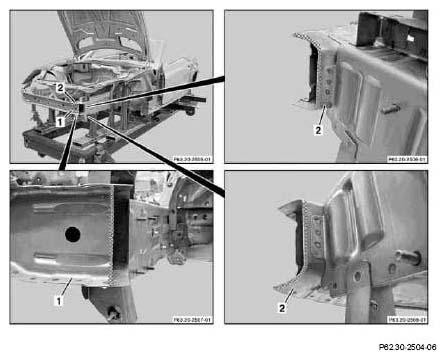

- Mark cutting lines on front cross member (2) and front cross member cover panel (1) (area A).
- Cut separation points on front cross member (2) and front cross member cover panel (1) with body saw (area A).
- Remove section from front cross member (2) and front cross member cover panel (1).
- Mark cutting line on front cross member cover panel (1) (area B).
- Drill dia. 10 mm hole in front cross member cover panel (1) (area C).
- Cut separation point on front cross member cover panel (1) with body saw (area B).
Do not damage sheet metal panels below.
- Remove remaining piece from front cross member cover panel (1)
- Grind connection surfaces on front cross member (2) and front cross member cover panel (1) down to bare metal in shaded areas.
- Remove grinding and drilling chips with wet/dry vacuum cleaner.
- Coat insides of spot weld flanges with zinc dust paint.
