Vario roof switch, location/task - GF77.39-P-3021SK
MODEL 171.4

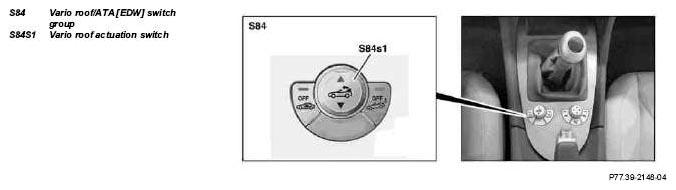

| Vario roof switch, location | The Vario roof actuation switch (S84s1) is integrated in the Vario roof/ATA switch group (S84) and is located in the center console behind the left shift lever or selector lever. |
| Vario roof switch, task | Trigger opening and closing functions of Vario roof. The Vario roof actuation switch (S84s1) is read in by the upper control panel control unit. |
