Remove/install outer sealing rail - AR72.10-P-1700V

MODEL 171.4

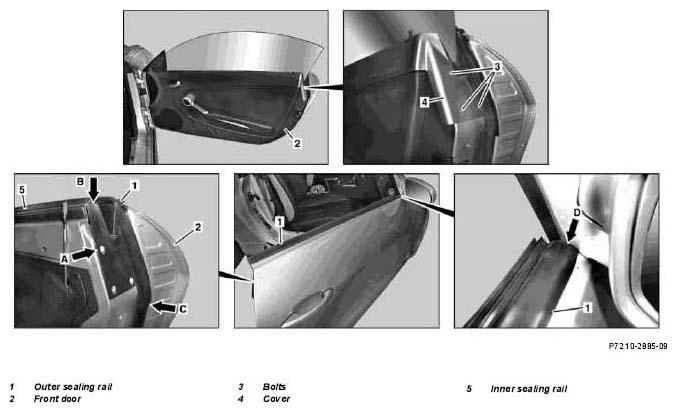

Fig 1: Identifying Outer Sealing Rail Components

Courtesy of MERCEDES-BENZ USA

Shown on right front door

	Remove/Install
1	Completely open left or right front door (2)	See Operating Instructions
2	Unscrew bolts (3) and remove cover (4)
3	Loosen rear sealing surface (arrow A) on outer sealing rail (1) from front door (2) and clean gluing surface	Installation:  Ensure that outer sealing rail (1) is positioned properly in relation to front door sealing frame 82) (arrow C) and to inner sealing frame (5) (arrow B)
4	Unclip outer sealing rail (1) from front door (2) from rear toward front with mounting wedge.	While unclipping, pull outer sealing rail (1) upward Always replace outer sealing rail (1)
		Installation:  Carefully clip in outer sealing rail (1), outer sealing rail (1) bends slightly. Installation:  Ensure that outer sealing rail (1) is positioned correctly in relation to outside mirror (arrow D).	Figure
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
