Hands-free system microphone, location/task - GF82.70-P-4102RM

MODEL 230 as of 1.6.04 up to 28.2.06 except CODE (494) USA version except CODE (498) Japan-Ausfuhrung

MODEL 230 as of 1.7.04 up to 31.3.06 with CODE (494) USA version

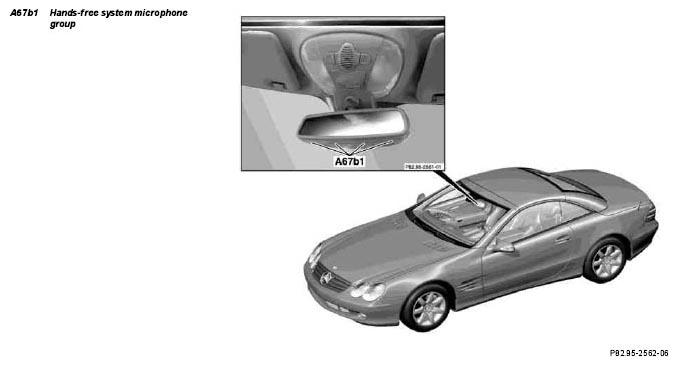

Fig 1: Identifying Hands-Free System Microphone Group Location

	Hands-free system microphone, location	The hands-free system microphone group (A67b1) is located in the housing for the inside rearview mirror unit (A67).
	Hands-free system microphone, purpose	Voice input for making telephone calls using the hands-free system Voice input for making telephone calls using the voice control system (VCS) Voice input for an emergency call (TELE AID) (only )
