Remove/install paneling on B-pillar - AR68.30-P-4700RBS (Black Series)

MODEL 230.4 with CODE (P99) "AMG Black Series" special model

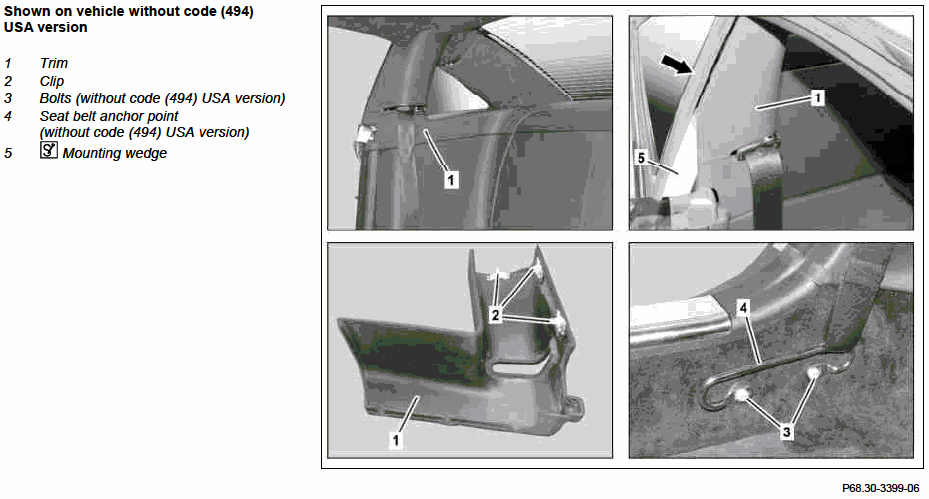

Fig 1: Removing/Installing Paneling On B-Pillar - Black Series

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move driver and front passenger seat toward front to end position
2	Unscrew bolts (3) from seat belt anchor point (4) and guide seat belt anchor point (4) out of seat belt	On vehicles without code (494) USA version
			*BA91.40-P-1001-01A
			Fig 2
3	Unclip paneling (1) with assembly wedge (5) in door area toward front		Fig 2
4	Remove paneling (1) inwards and upwards	Installation:  Replace damaged clips (2). Ensure that seal (arrow) is seated correctly on paneling (1).
5	Pull seat belt out of paneling (1)	Not on vehicles with code (494) USA version
6	Install in the reverse order

TRUNK LID

Number	Designation		Model 230
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	35

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
