Remove, install rear Keyless Go antenna - AR80.61-P-0020RBS (Black Series)

MODEL 230.4

with CODE (889) Keyless Go

with CODE (P99) "AMG Black Series" special model

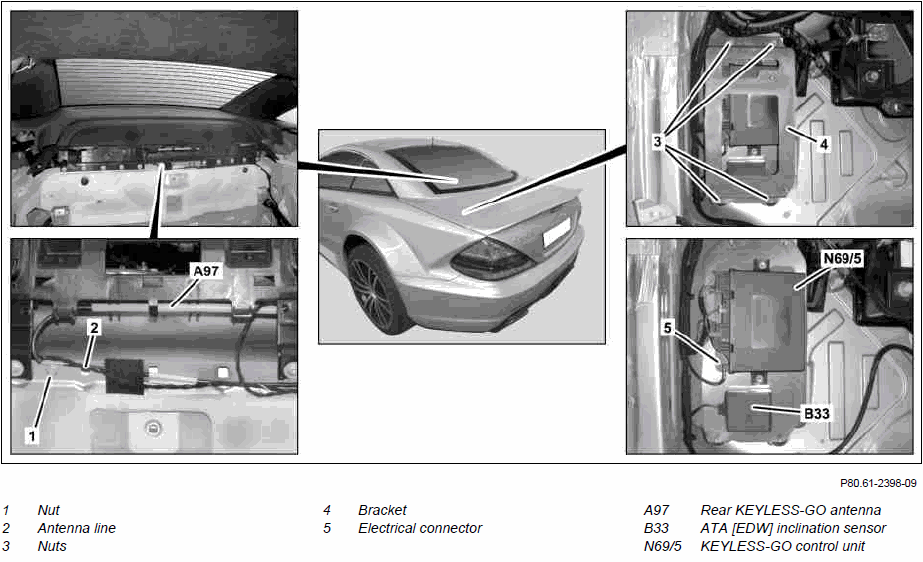

Fig 1: Removing/Installing Rear Keyless Go Antenna - Black Series

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off the ignition and remove the transmitter key from the EIS control unit	Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove the transmitter key from the vehicle and store it in a location beyond its transmission range (at least 2 meters).
2	Remove fuel tank	Model 230.479 with engine 275.983	AR47.10-P-4100RBS
3	Remove rear wall paneling		AR68.30-P-4750RBS
4	Unscrew nut (1)
5	Unclip rear KEYLESS GO antenna (A97)
6	Expose antenna line (2) to KEYLESS GO control unit (N69/5)
7	Remove sound system amplifier		AR82.62-P-7723RBS
8	Unscrew nuts (3) and remove bracket (4) upward
9	Disconnect electrical connector (5) on rear KEYLESS GO antenna (A97) from KEYLESS GO control unit (N69/5)
10	Install in the reverse order
