Active body control (ABC) location of hydraulic components - GF32.50-P-0001-06SL

Model 230

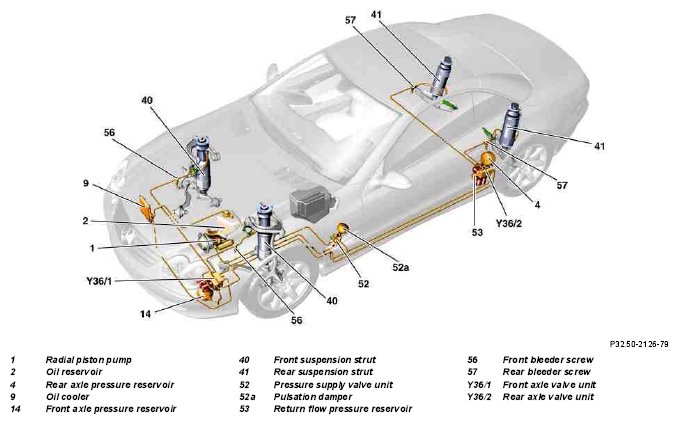

Fig 1: Identifying Active Body Control Location Of Hydraulic Components

G05068154

Courtesy of MERCEDES-BENZ USA
