Remove/install airbag unit on the steering wheel - AR91.60-P-0660R

MODEL 230.4 up to 28.1.08 except CODE (809) Model year 2009

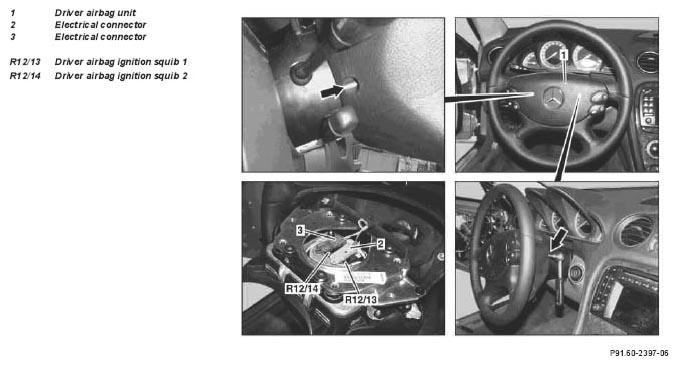

Fig 1: Identifying Airbag Unit On Steering Wheel Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01M
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors		AH91.00-P-0004-01A
1	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles with code (889) Keyless Go, press the Keyless Go start/stop button repeatedly until the ignition is switched off. Remove the Keyless Go transmitter card or transmitter key from the vehicle and store beyond the reach of the transmitter (min. 2 m).
2	Unscrew bolts (arrows) on the left and right of the steering wheel	Hold the driver airbag unit (1). The bolts (arrows) remain on the steering wheel.
			*BA91.60-P-1001-01A
3	Lift up the driver airbag unit (1) from the steering wheel, disconnect electrical connector (2) on the driver airbag ignition squib 1 (R12/13) and electrical connector (3) on driver airbag ignition squib 2 (R12/14)		Fig 2
		Installation:  The electrical connectors (2, 3) must latch audibly when connecting.
4	Detach driver airbag unit (1) from the steering wheel	Installation:  The steering wheel must be replaced after the airbag unit (1)is triggered. Refer to: ↓ Remove/install steering wheel
		Model 230.4 except 230.479	AR46.10-P-0100I
		Model 230.479	AR46.10-P-0100AM
5	Dispose of the driver airbag unit (1) which has been removed	Only when replacing the driver airbag unit (1).
	Notes on disposing of airbag and emergency tensioning retractor units		OS91.00-P-0001-01A
6	Install in the reverse order
7	Check supplemental restraint system (SRS) with the aid of STAR DIAGNOSIS	Only when the driver airbag unit (1) has been replaced.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS system	*WH58.30-Z-1048-13A

AIRBAG

Number	Designation		Model 230
BA91.60-P-1001-01A	Bolt, airbag to steering wheel	Nm	8

Fig 2: Identifying Removal Lever (203 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS system, Compact Passenger Car	6511 1801 00
