Remove/install right air inlet - AR83.25-P-1404R

MODEL 230.4

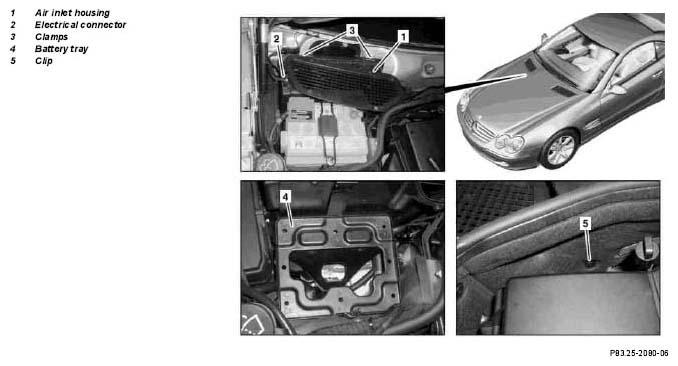

Fig 1: Identifying Right Air Inlet Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove starter battery		AR54.10-P-0005RB
2	Remove battery carrier (4)
3	Remove water collector		AR83.25-P-1402R
4	Disconnect electrical connector (2)
5	Remove clip (5)
6	Unclip clamps (3) and remove air inlet housing (1)	Installation:  The water drain valve must not be clamped off.
7	Install in the reverse order
