Remove/install injection system control unit - AR07.08-P-7008R (SL600 and SL65 AMG up to Model Year 2007, SL500, SL55 AMG)
ENGINE 112, 113, 275 in MODEL 230
MODIFICATION NOTES
| 24.4.03 | "Withdraw key and disconnect the ground lead of battery" deleted. | Step 1 | |
| 24.4.03 | "Control units adaptations" added | Step 2.1 |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing/installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Carry out control unit adaptations using STAR DIAGNOSIS | When replacing ME-SFI [ME] control unit (N3/10). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A | ||

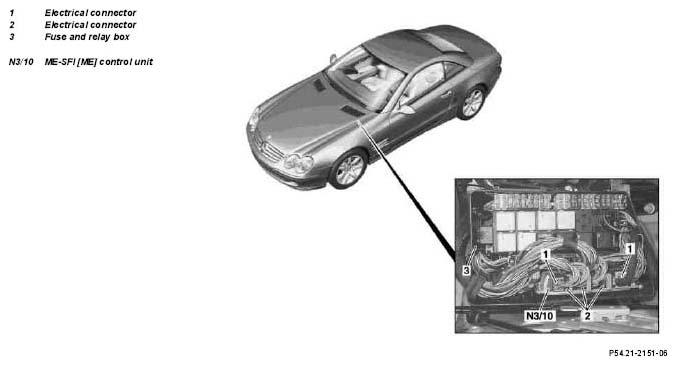

| 2 | Unlock and remove fuse and relay box cover (3) | ||
| 3 | Unplug electrical connector (1) at ME-SFI [ME] control unit (N3/10) | ||
| 4 | Unfasten lock of electrical connector at ME-SFI [ME] control unit (N3/10) and disconnect electrical connector (2) | ||
| 5 | Take out ME-SFI [ME] control unit (N3/10) toward top | ||
| 6 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnostic system, Compact Passenger Car | 6511 1801 00 |
