Hollow cavity preservation after repair work - AR97.20-P-1500R

MODEL 230.475

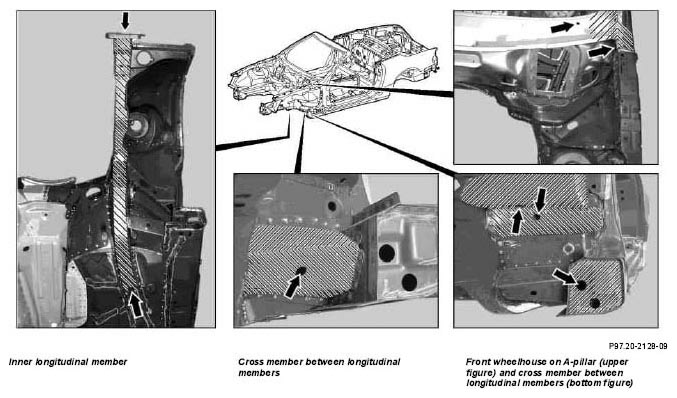

Fig 1: Locating Inner Longitudinal Member, Cross Member And Front Wheelhouse On-A-Pillar

Courtesy of MERCEDES-BENZ USA

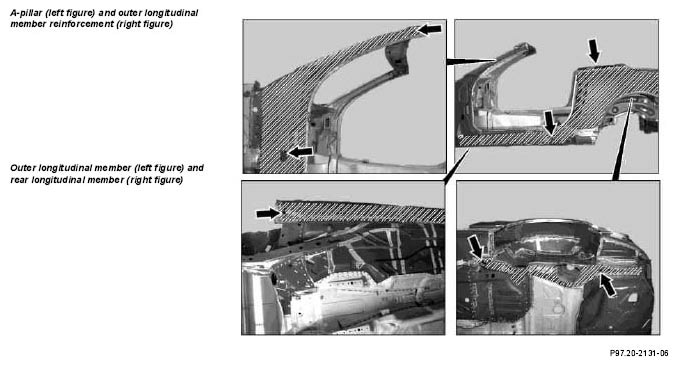

Fig 2: Locating Outer Longitudinal Member Reinforcement And Rear Longitudinal Member Reinforcement

Courtesy of MERCEDES-BENZ USA

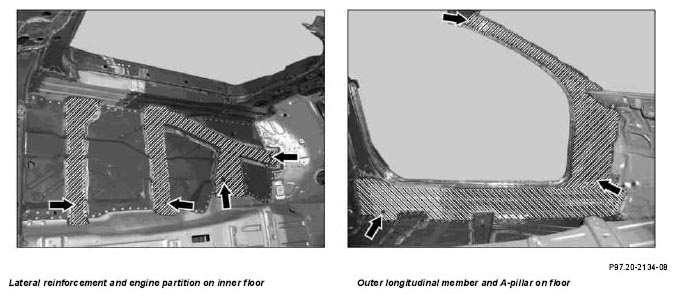

Fig 3: Locating Engine Partition On Inner Floor And A-Pillar On Floor

Courtesy of MERCEDES-BENZ USA

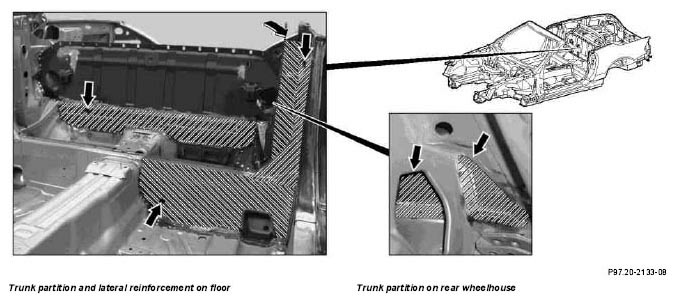

Fig 4: Identifying Lateral Reinforcement On Floor And Trunk Portion On Rear Wheelhouse

Courtesy of MERCEDES-BENZ USA

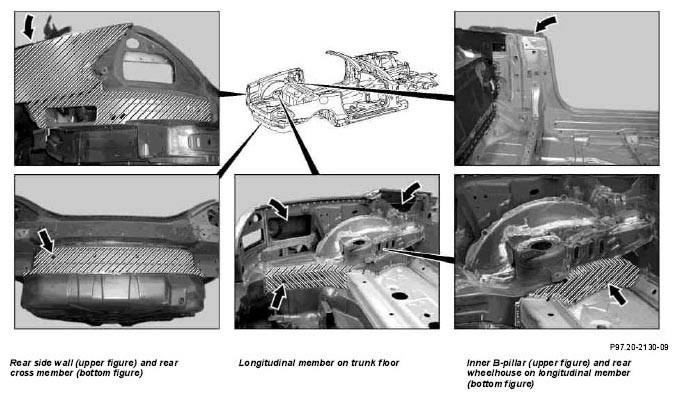

Fig 5: Identifying Rear Side Wall, Rear Cross Member And Longitudinal Member On Trunk Floor

Courtesy of MERCEDES-BENZ USA

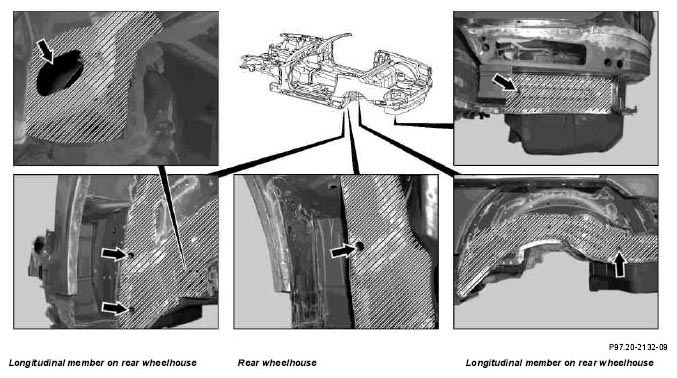

Fig 6: Identifying Longitudinal Member On Rear Wheelhouse And Rear Wheelhouse

Courtesy of MERCEDES-BENZ USA

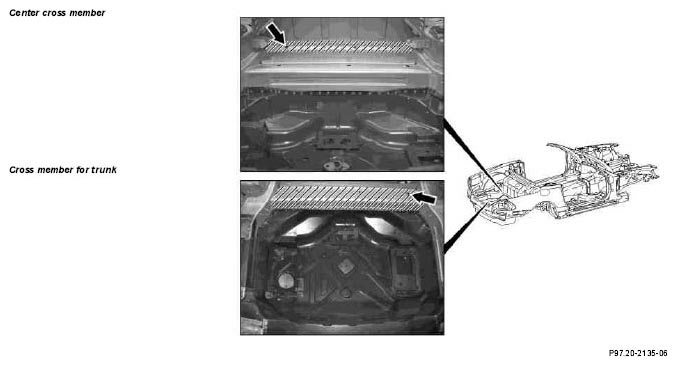

Fig 7: Identifying Center Cross Member And Cross Member For Trunk

Courtesy of MERCEDES-BENZ USA

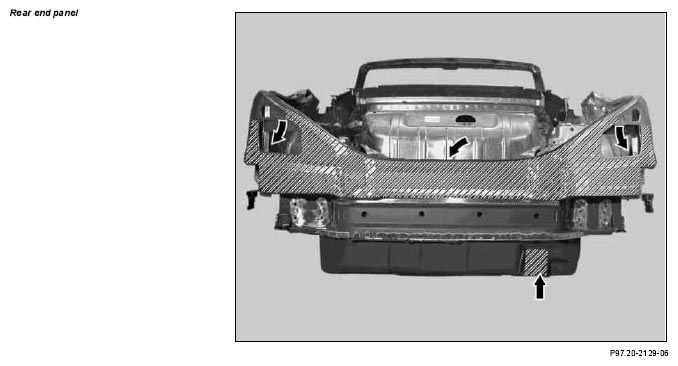

Fig 8: Locating Rear End Panel

Courtesy of MERCEDES-BENZ USA

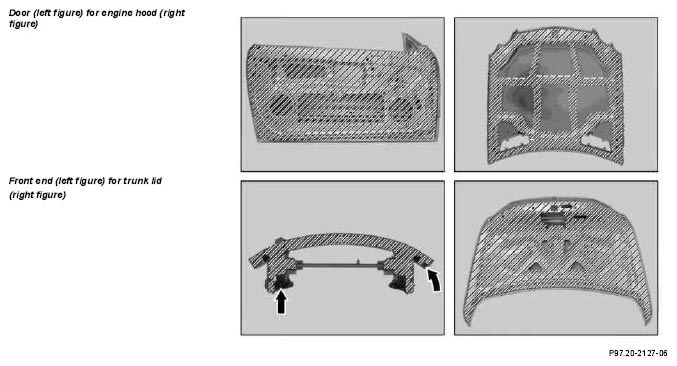

Fig 9: Identifying Door For Engine Hood And Front End For Trunk Lid

Courtesy of MERCEDES-BENZ USA

Figure item, etc.	Work instructions
	Explosion  and poisoning hazard  from solvent vapors and fumes. Injury hazard  to skin and eyes when working on corrosion protection agents.	Do not spray corrosion protection agent into open flames or flowing bodies and keep away from fire. Wear breathing mask and apply only in well ventilated areas.	AS97.00-Z-0001-01A
	Notes on hollow cavity preservation		AH97.20-P-0001-01B
	Processing instructions for hollow cavity preservation		AP97.20-P-0640-01A
	Apply wax preservation agent from inside in shaded areas following sealing and paintwork, however, before performing assembly work	Move spray hose into hollow cavities while as far as possible. Spray while slowly moving in and out.
	Apply repair preservation agent twice with a drying time of 5 minutes in between.	The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The hollow cavities should be dry.
	Ensure that the drain holes are not plugged following drying.	The processing temperature should not be below + 15°C Additional preservation measures may be required depending on the repair area deviating from the standard hollow cavity preservation illustrated.
	Rivets not sealed with seam sealing agent must be treated with wax preservative.
	Processing instructions for hollow cavity preservation agent		AP97.20-P-0640-01A
