Remove/install cover below instrument panel (right) - AR68.10-P-1520R

MODEL 230.4

Shown on model 230.4 without code (P99) "AMG Black Series" special model

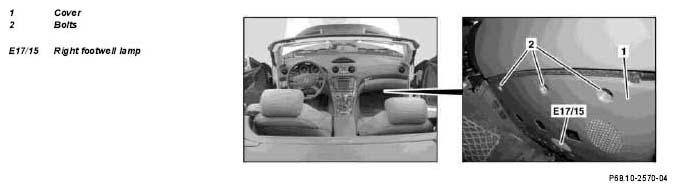

Fig 1: Identifying Cover Below Instrument Panel (Right) Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bolts (2)
2	Pull out cover (1) toward rear until electrical connector on right footwell lamp (E17/15) is accessible.
3	Disconnect electrical connector from right footwell lamp (E17/15) and remove cover (1).
4	Install in the reverse order
