Remove/install rear bumper - AR88.20-P-2200R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
Shown on vehicles up to 28.2.06 with code (404) Left multi-contour seat

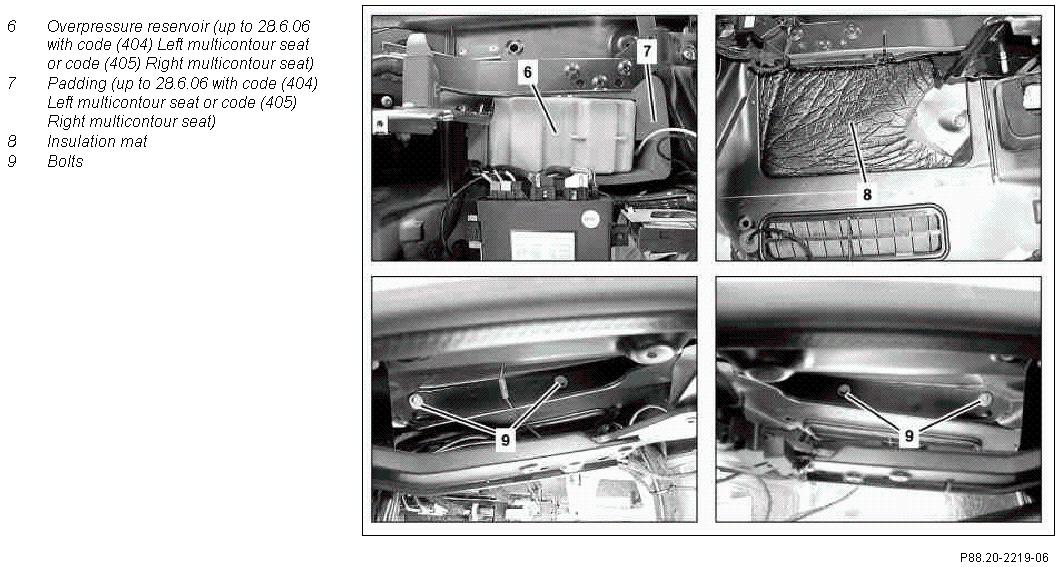

Fig 2: Identifying Overpressure Reservoir, Foam Rubber Padding And Sound Deadening Mat - With Code (404) Left Multi-Contour Seat
Shown on vehicles with code (220) Parktronic system (PTS)

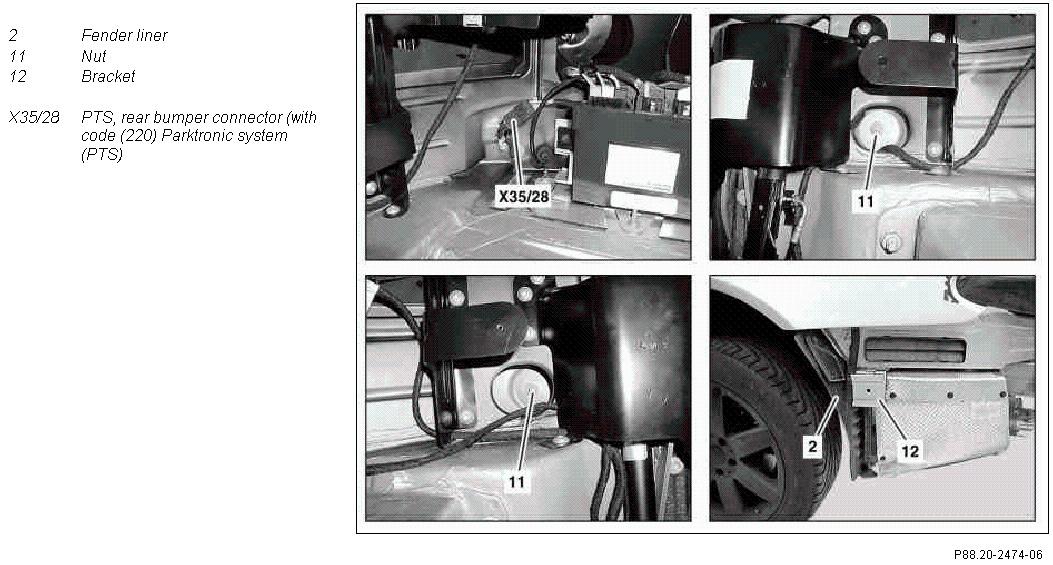

Fig 3: Identifying Fender Liner, Bracket And Rear Bumper PTS Connector - With Code (220) Parktronic System
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||

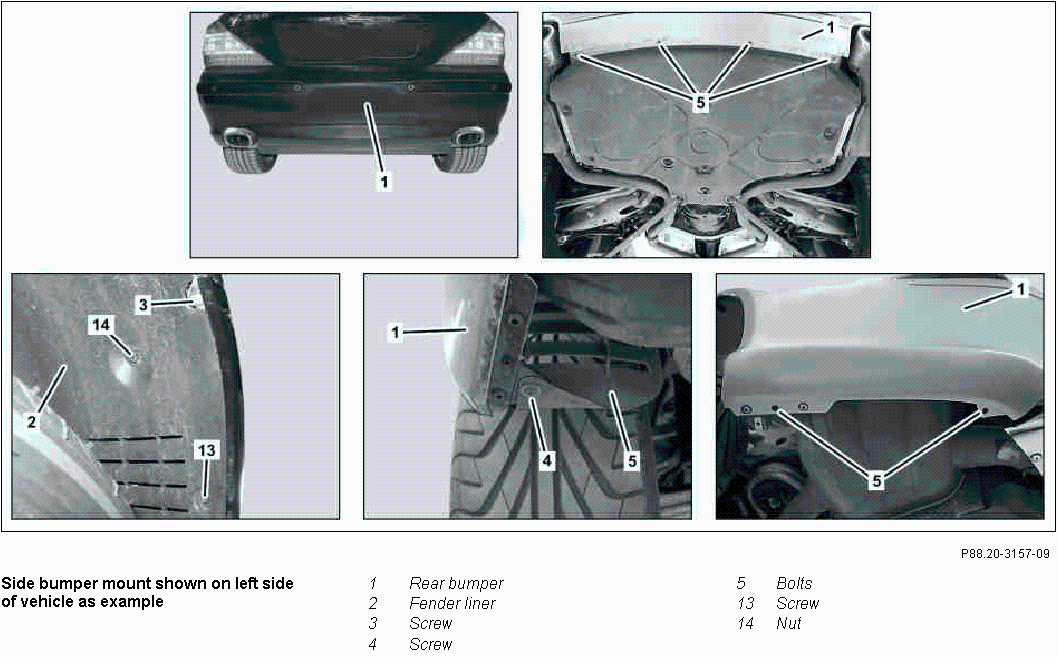

| 2 | Press fender liner (2) to side and unscrew bolt (3). | ||
| 3 | Unscrew bolt (4) at bottom of rear fender (1). | ||
| 4 | Unscrew bolts (5) at bottom of rear bumper (1). | ||
| 5 | Remove side luggage compartment paneling | AR68.30-P-4800R | |
| 6 | Remove overpressure reservoir (6), lay down to side with pneumatic line connected and remove foam rubber padding (7) | On vehicles with code (404) Left multi-contour seat or code (405) Right multi-contour seat | |
| 7 | Remove left and right damping mat (8) | ||
| 8 | Unscrew bolts (9) at side in fender | ||
| 9 | Disconnect PTS connector for rear bumper (X35/28) and press rubber grommet with electrical line out of body | On vehicles with code (220) Parktronic system (PTS) | |
| 10 | Unscrew nuts (11) from rear center section | ||
| 11 | Remove rear bumper (1) with aid of helper | ||
| 12 | Install in the reverse order |
