Remove/install Keyless Go control unit - AR80.35-P-0001R
MODEL 230.4
with CODE (889) Keyless Go
except CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove left side paneling in trunk | AR68.30-P-4800R | |
| 2 | Continue to press Keyless Go start/stop button until ignition is switched off and remove Keyless Go transmitter card or transmitter key from vehicle and store outside of transmission range (min. 2 m). | ||
| 3 | Disconnect electrical connector from Keyless Go control unit (N69/5) | ||

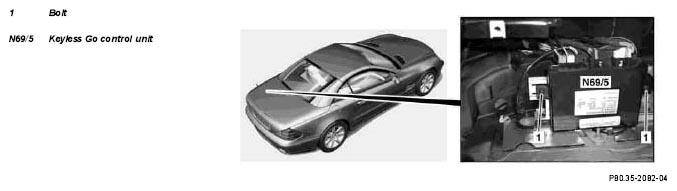

| 4 | Unscrew bolts (1) and remove Keyless Go control unit (N69/5) | ||
| 5 | Install in the reverse order |
