Removing and installing Parktronic system (PTS) warning display in instrument panel - AR54.65-P-0003R
MODEL 230.4 with CODE (220) Parktronic System (PTS)
| Remove/install | |||
|---|---|---|---|

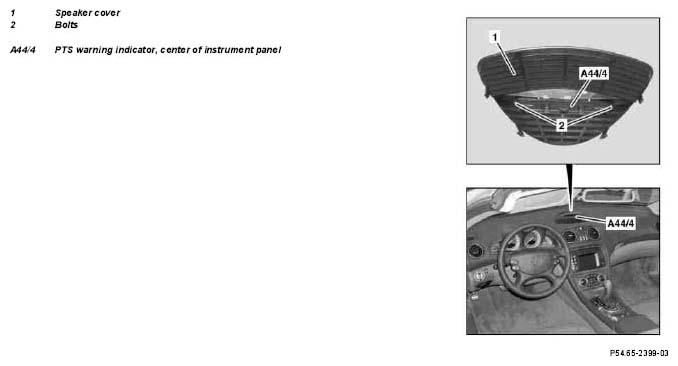

| 1 | Remove cover for speaker (1) | AR68.10-P-1050R | |
| 2 | Unscrew bolts (2) and remove center instrument panel PTS warning indicator (A44/4) from the cover for speaker (1) | ||
| 3 | Install in the reverse order |
