Remove/install contact switch for door - AR54.25-P-2000P

MODEL 209

Illustrated on model 203

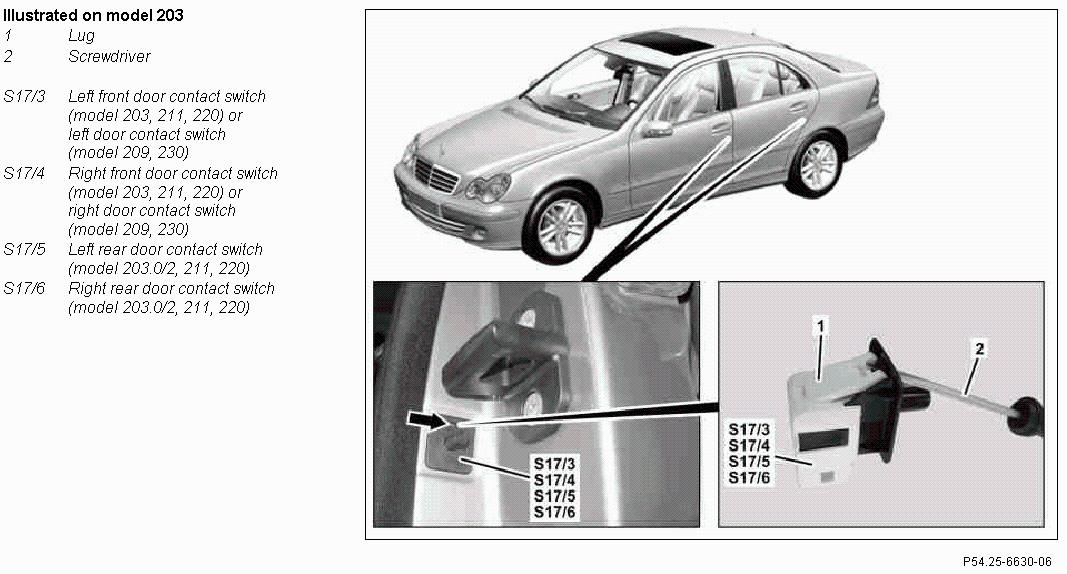

Fig 1: Removing/Installing Contact Switch For Door

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Using screwdriver (2) unlock shackle (1) through the opening on the door contact switch (S17/3, S17/4, S17/5, or S17/6) and pull door contact switch forwards until the electrical connector is accessible	When pulling out the door contact switch (S17/3, S17/4, S17/5, or S17/6) ensure that the shackle (1) on the door contact switch does not break off, otherwise the door contact switch must be replaced.
2	Disconnect electrical connector on the door contact switch (S17/3, S17/4, S17/5, or S17/6) and remove door contact switch
3	Install in the reverse order
