Remove/install battery cutoff relay - AR54.10-P-0038R
MODEL 230.4 without CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| 1 | Disconnect ground line from the on-board electrical system battery and the starter battery | AR54.10-P-0003R | |
| 2 | Remove right side paneling in trunk | AR68.30-P-4800R | |

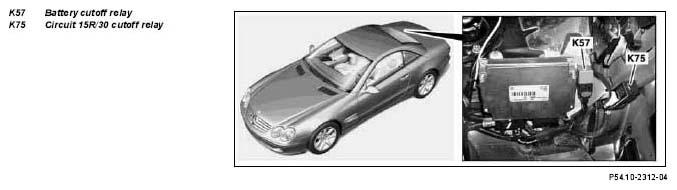

| 3 | Loosen battery cutoff relay (K57) from the relay base using a suitable screwdriver and remove | When installing new battery cutoff relay (K57). | |
| 4 | Loosen circuit 15R/30 cutoff relay (K75) from relay base and remove | When replacing the circuit 15R/30 cutoff relay (K75). | |
| 5 | Install in the reverse order |
