Remove/install SAM control unit with fuse and relay box in interior on passenger-side - AR54.21-P-1253RBS (Black Series)

MODEL 230.4 with CODE (P99) "AMG Black Series" special model

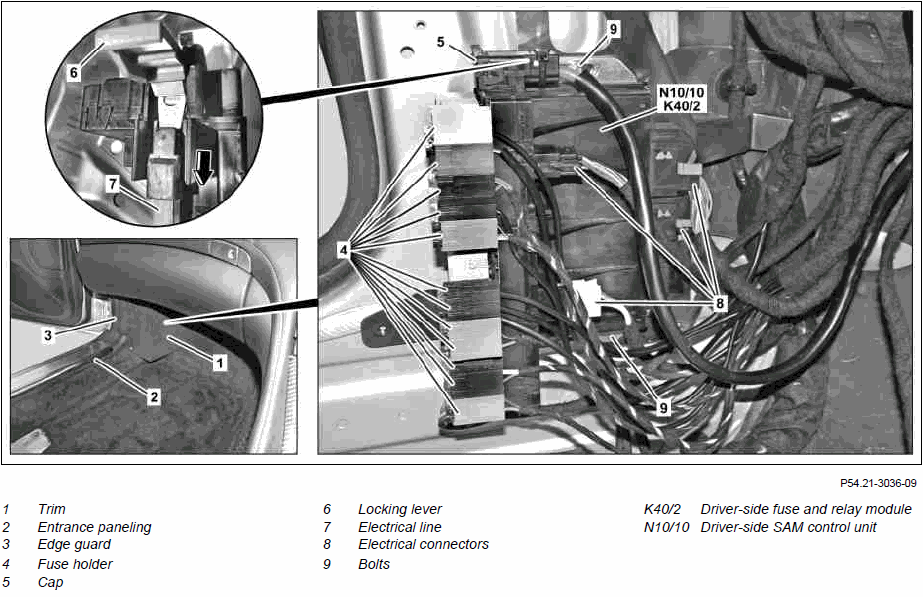

Fig 1: Removing/Installing SAM Control Unit With Fuse And Relay Box In Interior On Passenger-Side - Black Series
G00542749Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Temporarily store basic data of driver-side SAM control unit (N10/10) in STAR DIAGNOSIS When replacing the driver-side SAM control unit (N10/10).
IMPORTANTInstallation:  Transfer the temporarily stored basic data to the new driver-side SAM control unit (N10/10).

  Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
2 Disconnect ground line at the on-board electrical system battery   AR54.10-P-0003RBS
3 Unclip door sill trim (2) using mounting wedge SPECIAL TOOL Fig 2
4 Release edge guard (3) in area of cover (1) in footwell
5 Remove cover (1) in passenger-side footwell IMPORTANT The cover (1) is fastened in place using a screw.
6 Unlock and remove fuse holder (4) IMPORTANTInstallation:  The installation position for the fuse holder (4) is marked by a colored and mechanical coding.
7 Open cap (5)
8 Release cable strap on clamping lever (6) IMPORTANTInstallation:  Secure clamping lever (6) with cable strap.
9 Open clamping lever (6) and remove electrical line (7) (arrow)
10 Detach electrical connectors (8) on driver- side SAM control unit (N10/10) with fuse and relay module, driver-side (K40/2) IMPORTANTInstallation:  The installation position for the electrical connectors (8) is marked by a colored and mechanical coding.
11 Remove bolts (9)
12 Remove driver-side SAM control unit (N10/10) with driver-side fuse and relay module (K40/2)
13 Compare population of fuses and relays for new driver-side fuse and relay module (K40/2) with fuse and relay population for old relay population of old driver-side fuse and relay module (K40/2), if necessary, adapt population When replacing the driver-side fuse and relay module (K40/2).
14 Install in the reverse order
Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
G07741302Courtesy of MERCEDES-BENZ USA
