Remove/install SAM control unit with fuse and relay box in engine compartment - AR54.21-P-1270RBS (Black Series)

MODEL 230.4 with CODE (P99) "AMG Black Series" special model

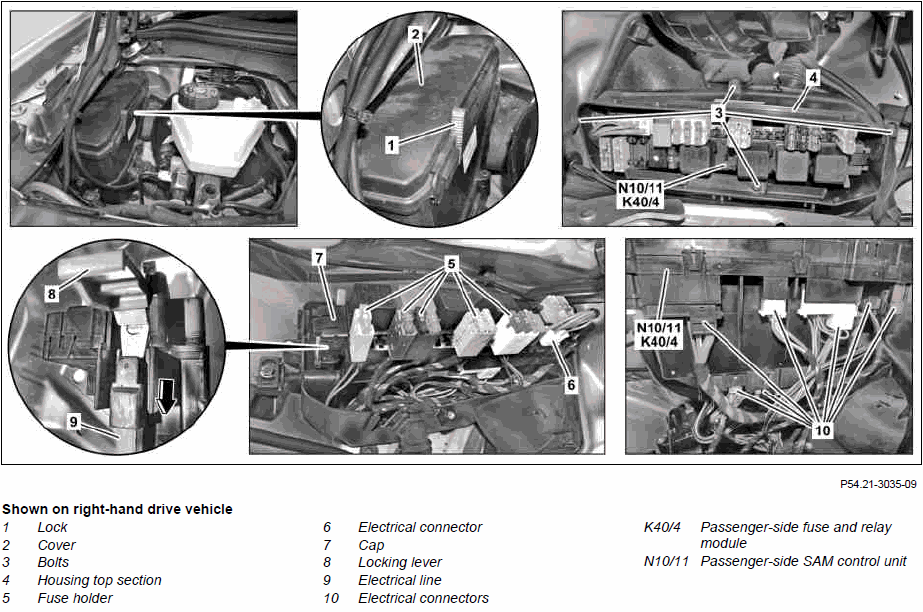

Fig 1: Removing/Installing SAM Control Unit With Fuse And Relay Box In Engine Compartment - Black Series
G00542750Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Temporarily store basic data of driver-side SAM control unit (N10/11) in STAR DIAGNOSIS When replacing the passenger-side SAM control unit (N10/11).
IMPORTANT Installation: Transfer the temporarily stored basic data to the new passenger-side SAM control unit (N10/11).

  Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
2 Disconnect ground line at the on-board electrical system battery   AR54.10-P-0003RBS
3 Open lock (1) and remove cover (2)
4 Remove screws (3) and lift off housing top (4)
5 Unlock and remove fuse holder (5) IMPORTANTInstallation:  The installation position for the fuse holder (5) is marked by a colored and mechanical coding.
6 Detach electrical connector (6) from passenger-side fuse and relay module (K40/4)
7 Lift passenger-side SAM control unit (N10/11) with passenger-side fuse and relay module (K40/4) upwards out of guides for fuse and relay box until the electrical connectors (10) are accessible
8 Open cap (7)
9 Release cable strap on clamping lever (8) IMPORTANTInstallation:  Secure clamping lever (8) with cable strap.
10 Open clamping lever (8) and remove electrical line (9) (arrow)
11 Detach electrical connectors (10) on passenger-side SAM control unit (N10/11) with fuse and relay module, passenger-side (K40/4) IMPORTANTInstallation:  The installation position for the electrical connectors (10) is marked by a colored and mechanical coding.
12 Remove passenger-side SAM control unit (N10/11) with passenger-side fuse and relay module (K40/4)
13 Compare population of fuses and relays for new passenger-side fuse and relay module (K40/4) with fuse and relay population for old relay population of old passenger-side fuse and relay module (K40/4), if necessary, adapt population When replacing the passenger-side fuse and relay module (K40/4).
14 Install in the reverse order
